Process Analytics On-Line Water Chemistry Analyzers Chloride and Sulfate Analyzers Analyzer 3000CS

Analyzer 3000CS

Online Measurement of Chloride & Sulfate.The 3000CS is a reliable, online analyzer for the direct measurement of chloride and sulfate in pure water and power plant cycle chemistry. This instrument detects these highly corrosive ions to prevent damage to critical power plant components.

Direct Detection of Chloride & Sulfate

The 3000CS provides a method for direct, online detection of corrosive ions without measurement interference from other ions or common additives.

Rapid Monitoring to Prevent Corrosion

Measurement cycles every 45 minutes ensure you can quickly react to chloride and sulfate excursions to prevent corrosive conditions from occurring.

Reduced Monitoring Effort and Costs

Typical chloride and sulfate monitoring requires expensive resources and lab work. The 3000CS eliminates the need for costly offline tests.

Material No.: 58044001

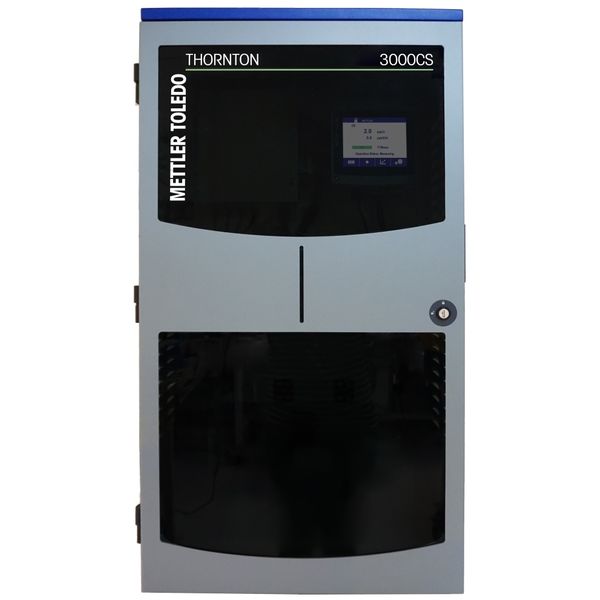

3000CS Chloride & Sulfate Analyzer
▲Chloride and Sulfate Analyzers
Call for Quote
Specifications - Analyzer 3000CS
Chloride Measurement Range
 0-300 ppb
Chloride Limit of Detection
 0.5 ppb
Chloride Measurement Accuracy
 ±5% of reading or ± 0.5 ppb
whichever is greater
Sulfate Measurement Range
 0-300 ppb
Sulfate Limit of Detection
 1 ppb
Sulfate Measurement Accuracy
 ±10% of reading or ±1 ppb
whichever is greater
Measurement Cycle Time
 45 min typical, programmable between 15 minutes and 1 hour
Sample Flow rate
 25-50 mL/min
Sample Temperature
 10-45°C (50-113°F)
Sample Pressure
 0.3-7 bar (5-100 psig)
Grab Sample Measurement
 Included
100 mL capacity
Power Supply
 100-240 VAC, 50-60 Hz, 100 W typical
Dimensions (HxWxD)
 927x508x305 mm (36.5"x20.9"x12")
Weight
 44 kg (97 lbs)
Ambient Operating Temperature
 10-35°C (50-95°F)
Humidity
 10-70% non-condensing
Ratings/Approvals
 CE / cULus
Process Connection
 Sample Inlet: 1/4" or 6 mm OD tube SS compressin fitting
Drain Hose: 19x25.4 mm (3/4 x 1") 2 m (6 ft) length included
Operator Interface
 Color touchscreen
Simultaneous display of ion concentrations and analyzer status
Analog Output
 22mA alarm, 500 ohm max load, not for use with externally powered circuit
Analog Output Scaling
 Linear, bi-linear, logarithmic (1,2,3,4 decades), auto ranging
Measurement Parameter
 Chloride and sulfate
Relay Contacts
 Mechanical rated at 250 VAC, 3 Amps (Relay 1 NC, Relay 2 to 4 NO), 4-SPDT Type Reed 250 VAC or DC, 0.5 Amps (Relay 5 to 8)
Analog Output Accuracy
 ±0.05 mA
Model Family
 3000CS
EnclosureType
 Full
Built-in sequencer
 No

Versatile for Critical Applications

The 3000CS is designed for measurement in a range of power plant water applications, including steam quality monitoring at the turbine inlet, condensate monitoring at the condensate polisher, boiler feedwater monitoring, and makeup water quality monitoring.

Intuitive Interface with Data Trends

This online chloride and sulfate analyzer uses the METTLER TOLEDO M800 transmitter with an intuitive touch screen interface to easily monitor cycle chemistry. It offers unique information such as trendlines for each measurement.

Easy Integration for Data Management

The 3000CS has an analog output for keeping a record of the chloride and sulfate contamination levels in your data acquisition software. This helps ensure that you stay within the specifications of your turbine warranty and helps you identify the causes of contamination.

Durable Enclosure for a Long Lifetime

A full enclosure protects the reagent containers and components of the 3000CS from harsh environmental conditions, ensuring a measurement unaffected by outside influences. The 3000CS operates in humidities from 10% to 70% (non-condensing).
