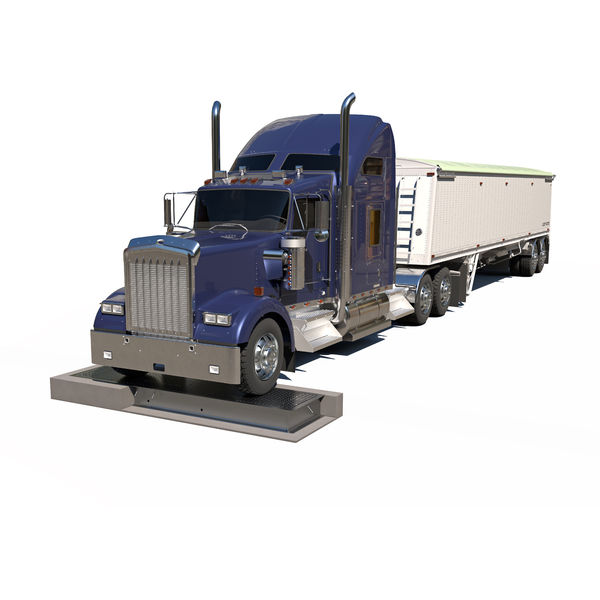

AxlePass Weigh-in-Motion

Small Footprint, Big Impact.Axle Scale for Weighing Trucks In-Motion

High Efficiency

Gain valuable insights without slowing down your operation. AxlePass™ keeps trucks moving for high efficiency and little change to operational flow.

Axle and Gross Weights

AxlePass is able to capture both axle weights and gross weights, making it an ideal solution for many types of operation.

Lower Cost

With a much smaller footprint than full-length scales, an axle scale has a lower initial cost and lower ongoing maintenance costs.

Material No.: 61808947002

Call for Quote
Specifications - AxlePass Weigh-in-Motion
Accuracy (Class)
Up to 2% gross vehicle weight
Speed
0 mph – 15 mph
Dimensions
2.5 ft. x 12 ft. (.76 m x3.65 m)
Scale Terminal
IND570 LS WIM
Load Cell
0743 analog shear-beam
Scale type
VWS410 Axle Scale
Foundation Type
Pit
Weighing Time
less than 1 minute per vehicle
Gross Capacity
40,000 lb
Resolution
20 lb

True Lifecycle Testing for Longevity

Our weighbridge designs are built to last, proven by 1 million cycles of true lifecycle testing in our module masher.

Reduce Emissions

By keeping truck idling time to a minimum, operations are able to reduce emissions at their site to meet their sustainability goals.

Diverse Solutions

AxlePass weigh-in-motion is fit for many industries, such as: ports, distribution centers, warehouses, truck stops, and more.

Service and Expertise

Choose from our extensive range of services to help you preserve the value of your investment and meet the demands of your business. Minimize downtime while maximizing productivity.
