The InPro 7100(i) series is designed for the Chemical, Pharmaceutical, Food & Beverage and Pulp & Paper industries. The PEEK (FDA) shaft material offe...

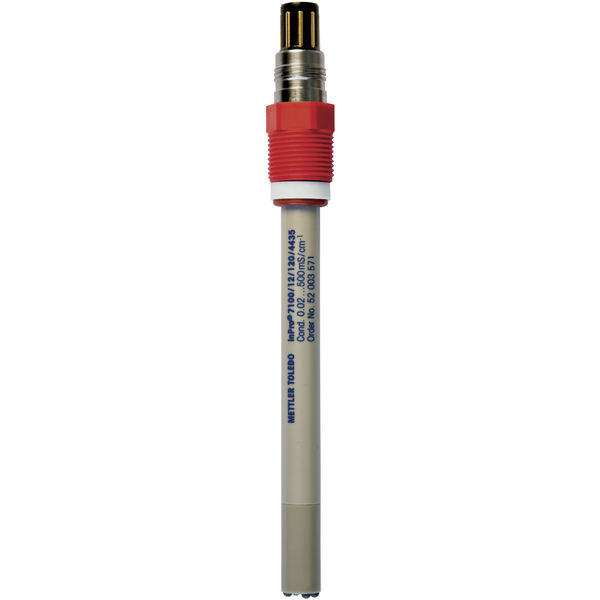

Cond Sensor InPro7100/12/120/4435
Compact Design and Top Performance.The InPro 7100/12/120/4435 conductivity sensor is particularly well suited for applications in the chemical, pharmaceutical, food & beverage and pulp & paper industries.
Fast Responding Sensor
The fast response time of the InPro 7100 conductivity sensor allows quick detection of process changes, leading to better process control.
Resistant to Aggressive Media
The PEEK shaft material offers high resistance to aggressive solutions and is particularly suitable in processes with frequent CIP/SIP cycles.
Wide Measurement Range
The InPro 7100 sensor has an extended measurement range from 0.02 - 500 mS/cm, which makes it a valuable solution for a wide range of applications.
Material No.: 52003571
Product Family:conductivity resistivity analyzers00020024
Specifications - Cond Sensor InPro7100/12/120/4435
| Temperature Sensor | PT 1000 |
| Cell Constant | 0.31 cm-1 |
| Connection | VP (IP68) |
| Cable Connection | Vario Pin (IP68) |
| Cell Constant (nominal) | 0.31 cm–1 |
| Measurement Technology | Conductive |
| Process Connection | Pg 13.5 |
| Sterilizable | Yes |
| Operating Temperature (Fahrenheit) | -4...302 °F |
| Operating Temperature (Celsius) | -20...150 °C |
| Sensor Diameter | 12mm |
| Mechanical Pressure Resistance (PSI) | 0 ... 290 psi at 275 °F0 ... 145 psi at 302 °F |
| Model Family | 4-electrode sensor |
| Hazardous Area Approvals | Yes |
| Measured Pressure Resistance | 0 - 145 psi @ 302 °F 0 - 290 psi @ 275 °F (0 - 10 bar @ 150 °C 0 - 20 bar @ 135 °C) |
| Electrode Material | 316 L / 1.4435 |
| Primary Media/Application | Chemical, pharmaceutical and F&B processes |
| Hygienic/Biocompatibility Approvals | No |
| Mechanical Pressure Resistance (Bar) | 0 ...20 bar at 135 °C0 ...10 bar at 150 °C |
| Sensor Material | PEEK (FDA), 316L SS |
| System accuracy | ± 5 % or better |
| Measurement Range | 0.02…400mS/cm |
Installation into Small Pipes
WideRange technology keeps the sensor design small and makes it easy to install. This allows installation even in pipes with small diameters (DN50).
Easy Process Installation
The InPro 7100 sensor is compatible with a variety of static and retractable housings, giving the user a wide choice of installation options.
Withstands Challenging Applications
The InPro7100 conductivity sensor has a very high resistance against aggressive chemicals. This is mainly due to the PEEK sensor body material's resistivity against aggressive liquids.
