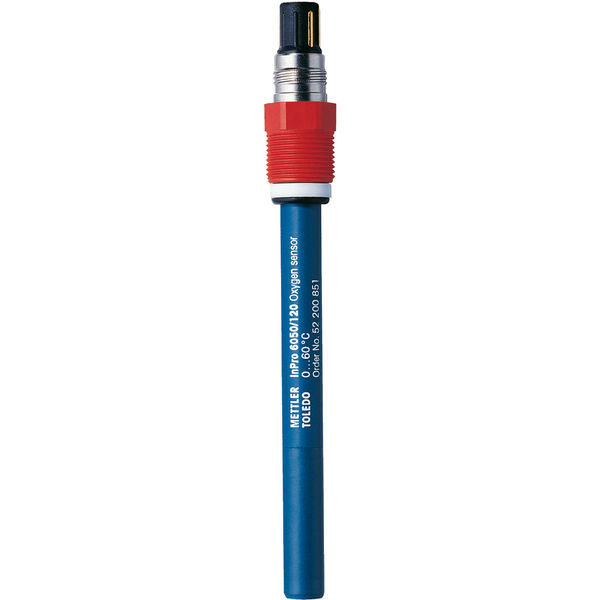

DO Sensor InPro6050/120
Continuous Control of Wastewater.The InPro 6050 dissolved oxygen sensor provides reliable continuous measurement of dissolved oxygen in water applications, including biological treatment in wastewater.
Designed for Wastewater Applications
The InPro 6050 sensor with automatic temperature compensation is mainly for use in water and wastewater applications under extremely dirty conditions.
Highest Measurement Accuracy
This sensor is based on a proven technology with an integrated thermistor in a rugged plastic sensor body, providing optimum measurement accuracy.
Low Maintenance Requirement
The InPro 6050 dissolved oxygen sensor requires very little maintenance. The sensor membrane is long lasting, and easy to exchange and maintain.
Material No.: 52200851
Product Family:dissolved oxygen sensors00030054
Specifications - DO Sensor InPro6050/120
| Measurement Parameter | Oxygen |
| Operating Range | 30 ppb - sat. |
| Measurement Technology | Amperometric/Polarographic |
| Accuracy | ± [1 % + 30 ppb] |
| Response Time | T98 = <90s |
| IP rating | IP68 |
| Primary Media/Application | Wastewater Chemical Processes |
| ISM (Digital) or Analog | Analog |
| Sensor Diameter | 12mm |
| O-Ring Material | Viton, Silicone |
| Process Connection | Pg 13.5 |
| Sensor Length | 120 mm |
| Wetted membrane material | PTFE |
| Connector Design | VP7 |
| Model Family | InPro6050 |
| Autoclavable/Sterilizable | No |
| CIP resistant | No |
| Mechanical Temp. Range | 23 °F – 140 °F (-5 °C – 60 °C) |
| Design Pressure | 29 psi (2 bar) |
| Cable Connector | VP6 analog |
| Certificates & Approvals | Quality Certificate |
| Measurement Range | 30 ppb - sat. |
| Residual signal in O2 free media | <0.3% of signal in ambient air |
| Measuring Temp. Range | 32 °F – 140 °F (0 °C – 60 °C) |
| Detection limit | 30 ppb |
| Connection | VP (IP68) |
Rugged Sensor Design
The sensor shaft is of a chemical-resistant polymer material and the industrial watertight VarioPin (IP68) detachable connector is used to simplify cable installation.
Durable and Stable Sensor
The PTFE/silicone membrane is reinforced with an integral stainless steel mesh, providing durability and mechanical stability to ensure continuous measurement. The membrane is PTFE-coated to prevent fouling and protect it from chemical interference.
