Process Analytics Process Adaptions and Cleaning Systems Analytical Sensor Cleaning and Calibration Systems Cleaning System EasyClean 500

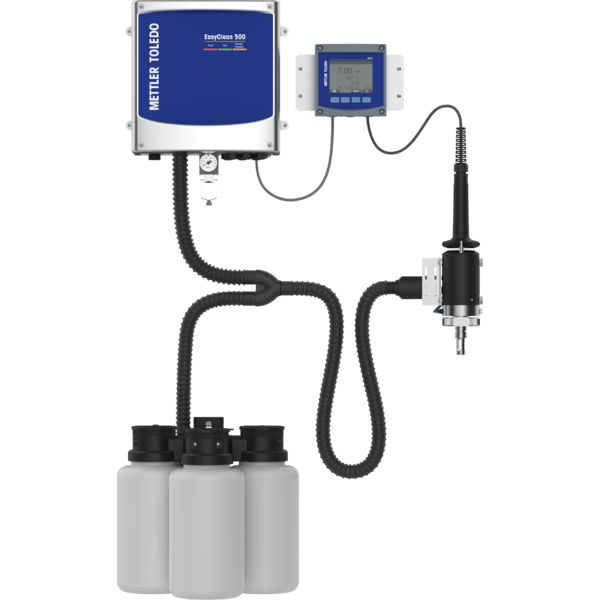

Cleaning System EasyClean 500

Automated measurement point maintenance.The EasyClean 500 is used for fully automatic cleaning and calibration of pH, ORP or oxygen measurement points. It provides a flexible system solution that can be utilized for continuous or periodic measurement.

Up to 80% Lower Maintenance

The only technician intervention on an EasyClean 500 system is periodic refilling of cleaning and buffer solutions, plus occasional sensor exchanges.

Reliable Process Control

Automated sensor maintenance with the EasyClean 500 and ISM's predictive diagnostics ensure reliable measurements and process consistency.

Keeps Employees Safe

Automated maintenance limits personnel's exposure to health-hazardous environments, helping to keep them safe.

Material No.: 30900558

Call for Quote
Specifications - Cleaning System EasyClean 500
Operating pressure for retractable housing
 0.4 - 0.8 MPa (4 - 8 bar
58 - 116 psi)
Protection Rating
 IP 65
Rinsing
 Yes
Cleaning
 Yes
Calibration
 Yes
Compressed Air Supply
 0.4 - 1 MPa (4 - 10 bar
58 - 145 psi)
Parameter(s)
 pH / ORP/ DO
Ambient Temperature
 2 °C – 55 °C
35.6 °F – 131 °F
Power Supply
 15V - 30 V/100mA
Model Family
 EasyClean 500
Pressurized Water
 0.2 - 0.6 MPa (2 - 6 bar
29 - 87 psi)
Approvals and Certificates
 CE compliant
Enclosure Material
 316L Stainless steel

For High-Maintenance Measurement Points

Some maintenance-intensive measurement points in harsh process conditions are too expensive to operate. The EasyClean 500 cleans the sensors automatically as often as required, making such measurement points economically viable.

Leverage the Power of ISM

The system leverages the Intelligent Sensor Management (ISM) platform, including error-free plug-and-measure sensor installation, automatically triggering of calibration whenever it is required, and precise data on when the sensor will need replaced.

Expert Servicing

Installation and regular system maintenance by METTLER TOLEDO Service experts help ensure the EasyClean 500 is always running exactly as it should - without disruption.

Documentation

Datasheets

Easyclean 500x
DataSheet: Easyclean 500X
EasyClean 500(X) is a compact cleaning and calibration system for fully automated routine maintenance of process analytical sensors. The EasyClean 500...

Manuals

Quick Setup Guide EasyClean 500(X)
Quick Setup Guide EasyClean 500(X)
The EasyClean 500(X) is a controller for fully automated cleaning and calibration of pH/ORP and oxygen measurements.
Instruction Manual Easy Clean 500x
Instruction Manual Easy Clean 500x
The making of the EasyClean 500(X) uses the best technology and obeys all the safety regulations in force. The EasyClean 500(X) is a controller for fu...
Transmitter M400 2-Wire – M400 2(X)H Type 2 and Type 3
Transmitter M400 2-Wire – M400 2(X)H Type 2 and Type 3

Transmitter Configuration Tools(TCT)

M400 2 wire Type 2 and Type Configuration Tool
M400 2 wire Type 2 and Type Configuration Tool

Accessories

M400 Process Transmitter

Transmitter M400 2H Type2
M400 2H Type 2 is a 1-channel, 2-wire, low power transmitter. It is compatible with analog and digital sensors, including pH/ORP, pH/pNa, conductivity 2e/4e, amp. O2, opt. O2 and CO2 (pharma). It features PID control, 2 OC digital outputs and HART.

Material No.: 30655902

Transmitter M400 2XH Type2
M400 2XH Type 2 is a 1-channel, 2-wire, intrinsically-safe transmitter. It is used for analog and digital sensors, including pH/ORP, pH/pNa, conductivity 2e/4e, amp./opt. O2 and CO2 (pharma). It features PID control, 2 OC digital outputs and HART.

Material No.: 30655901

Transmitter M400 2XH Type2 ISM
M400 2XH Type 2 ISM is a 1-channel, 2-wire, intrinsically-safe transmitter. It is compatible with digital pH/ORP, pH/pNa, conductivity 4e, amp. O2, opt. O2 and CO2 (pharma) sensors. It features PID control, 2 OC digital outputs and HART.

Material No.: 30655903

Transmitter M400 2H Type2 ISM
M400 2H Type 2 ISM is a 1-channel, 2-wire, low power transmitter. It is compatible with digital pH/ORP, pH/pNa, conductivity 4e, amp. O2, opt. O2 and CO2 (pharma) sensors. It features PID control, 2 OC digital outputs and HART.

Material No.: 30655904

Transmitter M400 2XH Type3
M400 2XH Type 3 is a 1-channel, 2-wire, intrinsically-safe transmitter. It is for analog and digital pH/ORP, pH/pNa, conductivity 2e/4e, amp.O2 (gas), opt.O2 , CO2 (pharma) sensors. It features PID control, 2 OC digital outputs and HART.

Material No.: 30655905

Transmitter M400 2XH Type3 ISM
M400 2XH Type 3 ISM is a 1-channel, 2-wire, intrinsically-safe transmitter. It is compatible with digital pH/ORP, pH/pNa, conductivity 2e/4e, amp.O2 (gas), opt.O2 and CO2 (pharma) sensors. It features PID control, 2 OC digital outputs and HART.

Material No.: 30655908

Consumables

Buffers for In-Line pH Sensors

Buffer pH 4.01 ACS red 5000ml
Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single container holds 5000 mL of pH 4.01 buffer solution.

Material No.: 51319012

Buffer pH 7.00 ACS green 5000ml
Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single container holds 5000 mL of pH 7.00 buffer solution.

Material No.: 51319016

Buffer pH 9.21 ACS blue 5000ml
Certified and traceable pH buffer solution for sensor calibration and verification in life science and industrial applications. This single container holds 5000 mL of pH 9.21 buffer solution.

Material No.: 51319017
