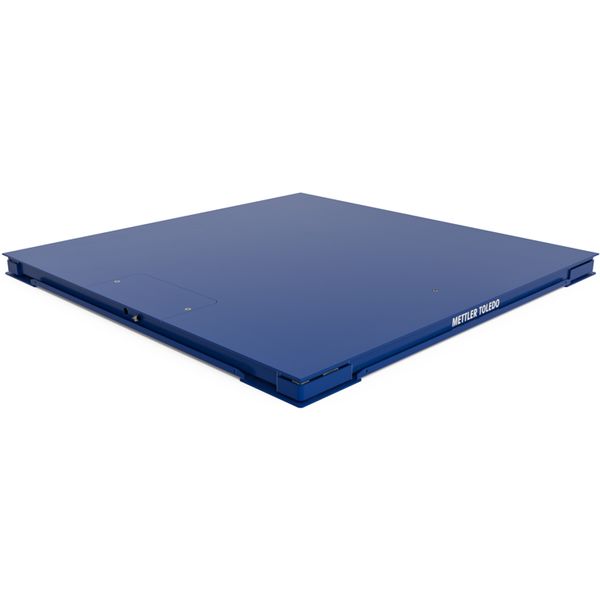

Floor Platform PFA584
Material No.: 3059784972
Product Family:floor-scales00060473
Specifications - Floor Platform PFA584
| Maximum Capacity | 5,000 lb (3,000 kg) |
| Readability | 0.5 lb (500 g) |
| Readability (Certified) | 1 lb (1,000 g) |
| Platform Size (LxH) | 48 in x 3 in (1,219 mm x 78 mm x 1,219 mm) |
| Material | Mild Steel |
| Protection Rating | IP68 |
| Hazardous Approval | CSA FM Class I, Div. 1 ATEX Cat. 2GD ATEX Cat. 3GD FM Class I,II,III/Div 2 other local approvals IECEx |
| Scale Interface | Cable Free Analog SICSpro |
| Repeatability, typical | 200 g |
| Repeatability, (typical) | 0.4 lb |
| Repeatability (sd) | 0.4 lb (200 g) |
| Repeatability | 0.4 lb |
| Floor Scale Type | All Floor Scales |
| Environment | Wet & Harsh Wet (≥IP66) |
| Legal for Trade | NTEP OIML |
| Hazardous Area | Non-hazardous area Zone 1/21 Zone 2/22 Division 2 Division 1 |
| Dimensions/Platform Size | from 41" to 59.9" from 1,001 to 1,500 mm |
| Platform Type | Floor scale |
| Hygienic Design | No |
