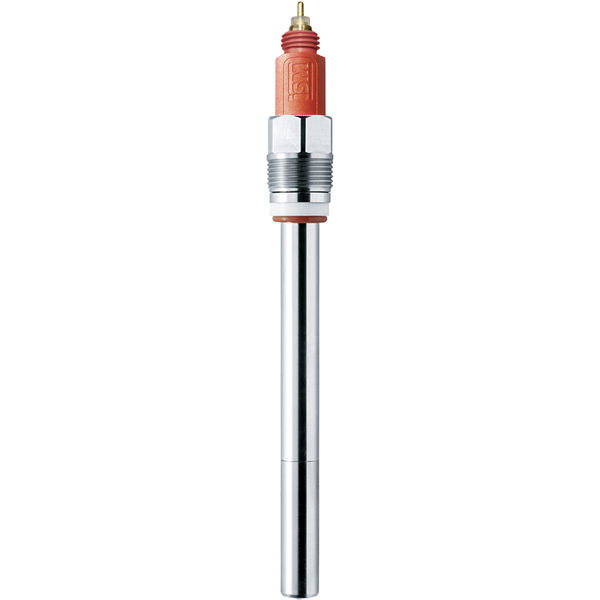

O2 Sensor InPro6900iG/12/120
Low Range, Gas-Phase Oxygen Sensor.The InPro 6900iG/12/120 is an amperometric gas-phase oxygen sensor that is designed for low oxygen range applications with an accuracy of 50 ppm. This sensor uses Intelligent Sensor Management (ISM) diagnostics to reduce maintenance and downtime.
Low Level Oxygen Measurement In-Line
The InPro 6900iG/12/120 is designed for processes that require high accuracy at low oxygen concentrations, such as N2 blanketing and inertization.
Very Stable Oxygen Measurement
The large surface area of the cathode electrode and the guard ring for scavenging oxygen molecules ensure stable measurements.
Real-Time Sensor Performance Monitoring
The InPro 6900iG/12/120 uses ISM technology to provide advanced diagnostics, including days until the membrane kit should be replaced.
Material No.: 52206437
| Measurement Parameter | Gas-Phase Oxygen |
| Measurement Technology | Amperometric Clark Electrode |
| Measurement Range | 51 ppm - 60 V-% O2 |
| Accuracy | ≤ ± [1% +50 ppm] |
| Response Time | T90 ≤ 20s (nitrogen to 15 Vol-% O2 at 25 °C / 77 °F) |
| Primary Media/Application | Chemical Processes Pharmaceutical/Life Science Production |
| ISM (Digital) or Analog | ISM (Digital) |
| Cable Connector | K8S |
| Sensor Length | 120 mm |
| Process Connection | Pg 13.5 |
| Connector Design | Straight |
| O-Ring Material | Silicone |
| Sensor Diameter | 12 mm |
| Surface Roughness of Wetted Parts | N5/Ra 16 (Ra=0.4mm/16min) |
| Wetted Materials | 316L Stainless Steel |
| Wetted membrane material | PTFE |
| Model Family | InPro6900iG |
| Detection limit | 50 ppm |
| Detection limit | 50 ppm |
| Sensor signal in air at 25 °C (77 °F) | 250...500 nA |
| Residual signal in oxygen free media | <0.03 % of signal in ambient air |
| Temperature compensation | Automatic |
| Measuring Temp. Range | 32 °F – 158 °F (0 °C – 70 °C) |
| Operating Pressure (Bar) | 0.200 bar–9.000 bar |
| Operating Pressure (PSI) | 2.9 to 130 psi absolute |
| Mechanical Temp. Range | 23 °F – 250 °F (-5 °C – 121 °C) |
| Design pressure (bar) | maximum 12 bar |
| Design Pressure (PSI) | maximum 174 psi absolute |
| Hazardous Area Approvals | ATEX: Ex ia IIC T6 / T5 / T4 / T3 Ga / Gb, Ex ia IIIC T69 °C / T81 °C / T109 °C / T161 °C Da / Db. FM: IS Cl. I, II, III, Div 1, GR ABCDEFG / T6 * |
| Hygienic/Biocompatibility Approvals | EHEDG, FDA/USP Class VI |
| Other certificates | METTLER TOLEDO Quality Certificate, Material certificate 3.1, N5/Ra 17 |
| Mechanical Temperature Resistance (Celsius) | -5 °C – 121 °C |
| Operating Range | 50 ppm - 60 V-% O2 |
| Connection | K8S ISM |
| Measured Pressure Resistance | 0.2 bar – 9 bar |
| Mechanical Temperature Resistance (Fahrenheit) | 23 °F – 250 °F |
Accurate at Low Oxygen Concentrations
The InPro 6900iG/12/120 offers reliable measurement between 0.1% and 60% oxygen at an accuracy of 50 ppm. This makes it suitable for applications that need measurement at a low ppm level and require high operational availability.
Suited to Your Process Needs
To meet the requirements of your specific application, the InPro 6900iG/12/120 is 120 mm long for small to medium length installations. It uses a standard silicone O-ring with 316L stainless steel wetted parts.
Fast Sensor Replacement for More Uptime
The InPro 6900iG/12/120 offers an easy-to-change membrane body and ISM Plug and Measure technology. Plug and Measure allows a sensor to be polarized and calibrated away from the process under lab conditions, and then inserted directly into the process.
Plan Maintenance with ISM Diagnostics
ISM technology in the InPro 6900iG/12/120 monitors sensor stress to provide a prediction for upcoming calibration needs. It also tracks electrolyte levels to identify evaporation and leakage, and informs you when refilling is required.
