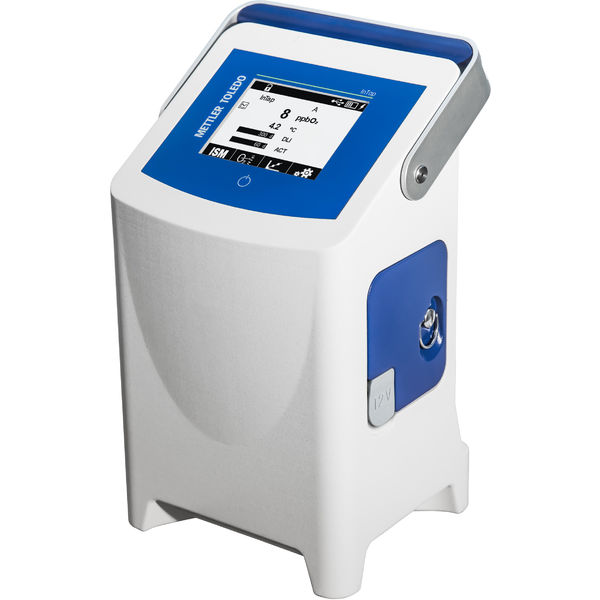

O2 Analyzer InTap portable
For Maximum Beer Quality Monitoring.The InTap meter, with internal optical dissolved oxygen sensor, samples and measures DO values at-line for optimum control of beer production. It also serves as a tool for convenient calibration of in-line optical DO sensors.
Reduce calibration workload by 50%
Calibrate in-line sensors on-the-fly via Bluetooth interface. For convenient calibration of in-line optical DO sensors.
Proven optical technology
Contains high performance DO sensor using optical measurement technology, now accepted as standard in brewery applications.
Safeguards measurement point security
Measures and documents up to 99 measurement points electronically.
Material No.: 30425550
Product Family:portable DO meter00070002
Specifications - O2 Analyzer InTap portable
| Measurement Parameter | Optical fluorescence quenching |
| Measurement Range | 0 ppb – 2,000 ppb |
| Accuracy | ≤± [1% +2ppb] |
| Weight | 3.2 kg |
| Response Time | T98<20s |
| IP rating | IP 67 |
| Primary Media/Application | Food/Beverage Production |
| Power | 13 VDC, 2.5 A |
| Process Connection | Hose - Swagelock 6mm |
| CIP resistant | 80° 2% NaOH |
| Measuring Temp. Range | -5 °C – 45 °C |
| Operating Pressure (Bar) | 0-6 |
| Design Pressure | 10 bar |
| Battery Life | up to 24 h |
| Protection Rating | IP67 |
| Digital Storage | 8 GB |
| Operating Range | 0 - 2000 ppb |
| Parameter(s) | DO / O2gas |
| Power Supply | 12 V DC nominal |
| Detection limit | 2 ppb |
Quick, convenient calibration
After measuring DO concentration at the sampling point and if calibration of the in-line sensor's required, the InTap uses Bluetooth technology to transfer the calibration data. The in-line sensor is then adjusted automatically.
Accurate measurement down to low ppb
InTap utilizes the same optical technology as METTLER TOLEDO low ppb optical DO sensor (InPro 6970i) and measures accurately down to 2 ppb. These low values are needed in filling lines and production lines to avoid out-of-spec product.
Data safety throughout production
Data for up to 99 measurement points are recorded by the InTap portable dissolved oxygen meter and is saved on a USB drive for further documentation.
Traceable point-by-point measurement
Measurement point tracking in InTap means operators can easily tie measurement data to different places in production, and maintain records point-by-point for traceability and documentation purposes.
