Automated Lab Reactors and In-Situ Analysis Reactor Control Systems RX-10 with 1m touchscreen cable

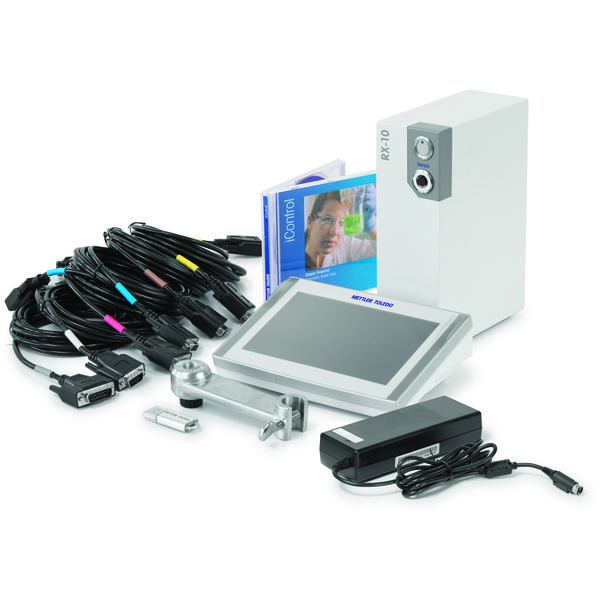

RX-10 with 1m touchscreen cable

Enhance Your Jacketed Lab Reactor.A Touchscreen-Based Control Unit to Automate and Monitor Jacketed Lab Reactors

One Simple, Standard Interface

The single and easy-to-use touchscreen interface provides a consistent and reliable control platform across all laboratory reactors.

100% Data Capture

Automatically collect process data from all laboratory reactors and sensors, together with data from in situ instruments (e.g. pH, EasySampler™)

Unattended Operation, 24/7

Use your reactor safely day and night, thanks to the pre-programming and safety capabilities of the RX-10.

Material No.: 30208790

RX-10 Reactor Control - Enhance Jacketed Lab Reactor
▲Reactor Control Systems
Call for Quote
Specifications - RX-10 with 1m touchscreen cable
Supported Thermostats
 Huber, Julabo and Lauda models with RS232 port
Supported Stirrer Motors
 Ika, Heidolph, ChemGlass and J-KEM models with RS232 port
SmartConnect port
 Pt100, -10 to 10V, 0 to 20mA
Dimensions (LxHxW)
 70 mm x 215 mm x 152 mm
Weight
 2.88 kg
Power Requirements
 100 – 240 VAC, 50/60Hz

Set-up – Connect – Get Started

RX-10 is designed for plug-and-play operation and facilitates the connection to third party accessories such as: cryostats, stirring equipment, sensors, dosing, or sampling units – quickly and without configuration.

SmartConnectTM Technology

With the SmartConnect Technology, sensors and probes used with the JLR are recognized automatically. Existing sensors such as temperature probes, mass-flow sensors, and pressure sensors can be retrofitted for use with SmartConnect.

State-of-the-Art Data Management

All process data is collected, processed, reported and securely stored to prevent lost information. Optional iC Data Center software guarantees that 100% of the captured data is stored in a safe place – automatically and with no additional burdens.

Documentation

Documentation for RX-10 Reactor Control

Datasheets

rx-10 datasheet
RX-10 Reactor Control Datasheet
RX-10 provides an interface connecting any types and volumes of jacketed reactors to cryostats, thermostats, stirrer motors, and sensors. This allows...
