Analytical Instruments Thermal Analysis Excellence Thermal Analysis Instrumentation Thermal Analysis System DSC 3

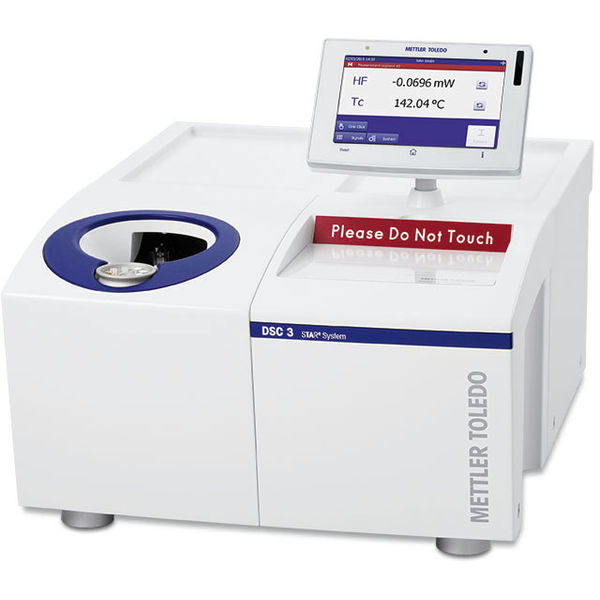

Thermal Analysis System DSC 3

For routine analysis.STARe System DSC 3

Robust MultiSTARe sensor

The DSC uses a robust and versatile DSC sensor with 56/120 thermocouples which guarantees simultaneous outstanding resolution and sensitivity.

Modular concept

Protects your investment and fulfills your current and future needs.

Simple FlexCal® calibration

Saves time and results in precise and accurate measurements.

Material No.: 30139229

Call for Quote
Specifications - Thermal Analysis System DSC 3
Technique
 Differential Scanning Calorimetry (DSC)
Applications
 Glass Transition
Heat Capacity (cp)
Crystallization
Kinetics
Oxidation Induction Time (OIT)
Temperature Modulated DSC
Data Sampling
 Max. 50 data pts/sec
Sensor Types
 FRS 5+
HSS 8+
Temperature Range
 -150 °C – 700 °C
Options
 Microscopy
Photocalorimetry
Signal Time Constant
 1.8 s (FRS)
3.1 s (HSS)
Sensor Output
 Heat Flow
Cooling Rate (min)
 0.02 K – 50 K
Heating Rate (/min)
 0.02 K – 300 K
Temperature Range
 -150 °C - 700 °C

Rugged MultiSTARe sensor with 56 thermocouples

detects the smallest and largest thermal effects

Robust endurance-tested sample robot

operates efficiently and reliably around the clock

Start the experiment with just One Click™

fast and easy routine operation

Simple FlexCal® calibration

saves time and results in precise and accuratemeasurements

Modular concept protects your investment

fulfills your current and future needs

Wide temperature range

from -150 °C to +700 °C in one measurement

Intelligent ergonomic design

simplifies instrument operation

Documentation

Product Brochures

DSC 3 Product Brochure
Brochure: DSC 3
Differential scanning calorimetry (DSC) is the most frequently used thermal analysis technique. DSC measures enthalpy changes in samples due to change...
Brochure: STARe Excellence Software
Brochure: STARe Excellence Software
Thermal analysis is a well-established analytical method that is widely used in many different fields. It provides laboratories with valuable results...
The Future of Thermal Analysis Brochure
Brochure: The Future of Thermal Analysis
Thermal Analysis comprises a group of techniques that measure the physical or chemical properties of a sample as a function of temperature or time whi...

Accessories

Consumables

Aluminum Crucibles for Thermal Analysis

Crucible 40 uL, Al, 100 pcs
Aluminum Crucibles

Material No.: 26763

Crucible 40 uL, Al, 100 pcs, pin
Aluminum Crucibles

Material No.: 27331

Pan 40 uL, Al, 400 pcs
Aluminum Crucibles

Material No.: 51119870

Crucible Light, 20 uL, Al, 100 pcs
Aluminum Crucibles

Material No.: 51119810

Crucible 25 uL, Al, 100 pcs
Set of 100 crucibles and lids optimized for enthalpy measurements. The crucible can be hermetically sealed to suppress endothermic evaporation or vaporization when carrying out DSC measurements on volatile substances.

Material No.: 30085850

Pan 100 uL, Al, 400 pcs
Aluminum Crucibles

Material No.: 51119872

Piercing Lid, Al, 400 pcs
Set of 400 lids specially made to be automatically pierced before the transfer into the measuring cell.

Material No.: 51119873

Copper Crucibles for Thermal Analysis

Pan 40 uL, Cu, 100 pcs
Set of 100 crucibles without lids. This type of crucible is almost exclusively used for the determination of oxidative stability (OIT). Usually the induction time measured in this way is compared to the value obtained using an inert aluminum pan.

Material No.: 51140407

Gold Crucibles for Thermal Analysis

Crucible 40 uL, Au, 6 pcs
Set of 6 gold crucibles with lids. The gold pan is chemically resistant. Other than some types of aluminum pans, it is the only pan that can be hermetically sealed by cold welding. The maximum permitted pressure is 0.25 MPa.

Material No.: 27220

Crucible 40 uL, Al gold plated, 10 pcs
Set of gold plated Aluminum crucibles with lids. The set includes 10 pans and lids. The gold plated aluminum crucible is chemically resistant and can be hermetically sealed by cold welding. The maximum permitted pressure is 0.2 MPa.

Material No.: 51142973

High Pressure Crucibles for Thermal Analysis

Crucible MP 120 uL, SST, 25 pcs, pin
Set of 25 crucibles, lids and seals. The medium pressure crucible is sealed with an FPM O-ring. The maximum pressure is 2 MPa. The crucible can also be sealed without using an O-ring (self-generated atmosphere).

Material No.: 26929

Crucible MP 120 uL, SST, 25 pcs
Set of 25 crucibles, lids and seals. The medium pressure crucible is sealed with an FPM O-ring. The maximum pressure is 2 MPa. The crucible can also be sealed without using an O-ring (self-generated atmosphere).

Material No.: 29990

Crucible HP 30 uL, SST, 3 pcs
Set of 3 crucibles with screw caps and seals. Compared to the larger high pressure crucibles this lightweight and flat crucible provides better DSC signals. After measurement the crucible can be opened, cleaned and reused about 20 times.

Material No.: 51140404

Crucible HP 30 uL, SST/Au, 3 pcs
Set of 3 gold-plated crucibles with screw caps and seals. Compared to the larger high pressure crucibles this lightweight and flat crucible provides better DSC signals. After measurement the crucible can be opened, cleaned and reused about 20 times.

Material No.: 51140405

Crucible HP 25 uL, SST/Au, 25 pcs
Set of 25 crucibles (without pin), lids and rupture disks. The gold-plated steel crucibles have proven highly effective in the field of safety investigations. They can only be used for one measurement each. The maximum pressure is 15 MPa.

Material No.: 30077139

Crucible HP 40 uL, SST/Au, 25 pcs
Set of 25 crucibles (without pin), lids and rupture disks. The gold-plated steel crucibles have proven highly effective in the field of safety investigations. They can only be used for one measurement each. The maximum pressure is 15 MPa.

Material No.: 26731

Crucible HP, 40 uL, SST/Au, 25 pcs, pin
Set of 25 crucibles (with pin), lids and rupture disks. The gold-plated steel crucibles have proven highly effective in the field of safety investigations. They can only be used for one measurement each. The maximum pressure is 15 MPa.

Material No.: 26732

Crucible HP 270 uL, SST, pin
The crucible is made of a high temperature resistant NiCr TiAl alloy. Thanks to its thread, the crucible can be sealed using a special sealing tool. After the measurement, it can be cleaned and reused. The crucible can only be used with a furnace expander.

Material No.: 650072

Crucible HP 500 uL, SST, pin
The crucible is made of a high temperature resistant NiCr TiAl alloy. Thanks to its thread, the crucible can be sealed using a special sealing tool. After the measurement, it can be cleaned and reused. The crucible can only be used with a furnace expander.

Material No.: 650066

Platinum Crucibles for Thermal Analysis

Crucible 30 uL, Pt, 4 pcs
Platinum Crucibles

Material No.: 51140842

Crucible 70 uL, Pt, 4 pcs
Platinum Crucibles

Material No.: 51119654

Crucible 150 uL, Pt, 4 pcs
Platinum Crucibles

Material No.: 24126

Software

Get Your Quote
Thermal Analysis System DSC 3
