Analytical Instruments Thermal Analysis Excellence Thermal Analysis Instrumentation Thermal Analysis System HP DSC 2+

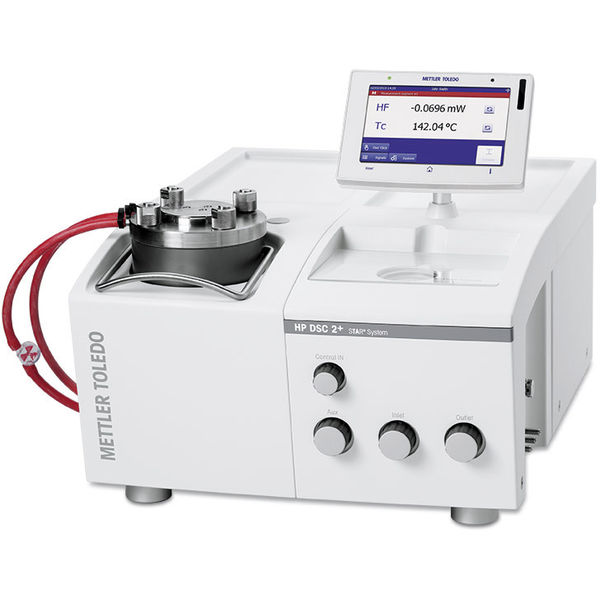

Thermal Analysis System HP DSC 2+

DSC analyses under pressure.STARe System HP DSC 2+

Outstanding sensitivity and resolution

The HP DSC cell is based on the successful DSC technology and guarantees outstanding performance thanks to its FRS 6+ and HSS 9+ DSC sensors.

For Accelerated Materials Testing

Benefit from shorter analysis times, measurements under process conditions, higher gas concentrations and better interpretation.

Innovative high-pressure technology

The furnace is specially insulated so that no temperature gradients occur. This guarantees stable and reproducible baselines, even at high pressures.

Material No.: 30139240

Call for Quote
Specifications - Thermal Analysis System HP DSC 2+
Technique
 High Pressure Differential Scanning Calorimetry
Differential Scanning Calorimetry (DSC)
Applications
 Glass Transition
Heat Capacity (cp)
Crystallization
Kinetics
Oxidation Induction Time (OIT)
Temperature Modulated DSC
Data Sampling
 Max. 50 data pts/sec
Sensor Types
 FRS 6+
HSS 9+
Temperature Range
 22 °C – 700 °C
Options
 Microscopy
Signal Time Constant
 1.8 s (FRS)
3.1 s (HSS)
Sensor Output
 Heat Flow
Pressure Range
 0 MPa – 10 MPa
Heating Rate (/min)
 0.1 K – 50 K

Shorter analysis times

higher pressure and temperature accelerate reactions

Measurements under process conditions

simulation of practical reaction environments

Better interpretation

effects can be separated by suppressing vaporization

Higher gas concentrations

reaction rate of heterogeneous reactions with gases is increased

Measurements under special atmospheres

oxidative, oxygen-free conditions or measurements with toxic or combustible gases are possible

High resolution, outstanding sensitivity

Measure very weak effects as well as excellent temperature resolution of close-lying effects

Comply with current standards

The HP DSC 2+ is technical compliant to current standards such as ASTM D5483, ASTM D5885, ASTM D6186, ASTM E1782

Documentation

Product Brochures

HP DSC 2+ Product Brochure
Brochure: HP DSC 2+
Increased pressure is a factor that influences all physical changes and chemical reactions in which a change in volume occurs. For material testing, p...
Brochure: STARe Excellence Software
Brochure: STARe Excellence Software
Thermal analysis is a well-established analytical method that is widely used in many different fields. It provides laboratories with valuable results...
The Future of Thermal Analysis Brochure
Brochure: The Future of Thermal Analysis
Thermal Analysis comprises a group of techniques that measure the physical or chemical properties of a sample as a function of temperature or time whi...

Accessories

Consumables

Aluminum Crucibles for Thermal Analysis

Crucible 40 uL, Al, 100 pcs
Aluminum Crucibles

Material No.: 26763

Crucible 40 uL, Al, 100 pcs, pin
Aluminum Crucibles

Material No.: 27331

Pan 40 uL, Al, 400 pcs
Aluminum Crucibles

Material No.: 51119870

Crucible Light, 20 uL, Al, 100 pcs
Aluminum Crucibles

Material No.: 51119810

Crucible 25 uL, Al, 100 pcs
Set of 100 crucibles and lids optimized for enthalpy measurements. The crucible can be hermetically sealed to suppress endothermic evaporation or vaporization when carrying out DSC measurements on volatile substances.

Material No.: 30085850

Pan 100 uL, Al, 400 pcs
Aluminum Crucibles

Material No.: 51119872

Piercing Lid, Al, 400 pcs
Set of 400 lids specially made to be automatically pierced before the transfer into the measuring cell.

Material No.: 51119873

Copper Crucibles for Thermal Analysis

Pan 40 uL, Cu, 100 pcs
Set of 100 crucibles without lids. This type of crucible is almost exclusively used for the determination of oxidative stability (OIT). Usually the induction time measured in this way is compared to the value obtained using an inert aluminum pan.

Material No.: 51140407

Gold Crucibles for Thermal Analysis

Crucible 40 uL, Au, 6 pcs
Set of 6 gold crucibles with lids. The gold pan is chemically resistant. Other than some types of aluminum pans, it is the only pan that can be hermetically sealed by cold welding. The maximum permitted pressure is 0.25 MPa.

Material No.: 27220

Crucible 40 uL, Al gold plated, 10 pcs
Set of gold plated Aluminum crucibles with lids. The set includes 10 pans and lids. The gold plated aluminum crucible is chemically resistant and can be hermetically sealed by cold welding. The maximum permitted pressure is 0.2 MPa.

Material No.: 51142973

High Pressure Crucibles for Thermal Analysis

Crucible MP 120 uL, SST, 25 pcs, pin
Set of 25 crucibles, lids and seals. The medium pressure crucible is sealed with an FPM O-ring. The maximum pressure is 2 MPa. The crucible can also be sealed without using an O-ring (self-generated atmosphere).

Material No.: 26929

Crucible MP 120 uL, SST, 25 pcs
Set of 25 crucibles, lids and seals. The medium pressure crucible is sealed with an FPM O-ring. The maximum pressure is 2 MPa. The crucible can also be sealed without using an O-ring (self-generated atmosphere).

Material No.: 29990

Crucible HP 30 uL, SST, 3 pcs
Set of 3 crucibles with screw caps and seals. Compared to the larger high pressure crucibles this lightweight and flat crucible provides better DSC signals. After measurement the crucible can be opened, cleaned and reused about 20 times.

Material No.: 51140404

Crucible HP 30 uL, SST/Au, 3 pcs
Set of 3 gold-plated crucibles with screw caps and seals. Compared to the larger high pressure crucibles this lightweight and flat crucible provides better DSC signals. After measurement the crucible can be opened, cleaned and reused about 20 times.

Material No.: 51140405

Crucible HP 25 uL, SST/Au, 25 pcs
Set of 25 crucibles (without pin), lids and rupture disks. The gold-plated steel crucibles have proven highly effective in the field of safety investigations. They can only be used for one measurement each. The maximum pressure is 15 MPa.

Material No.: 30077139

Crucible HP 40 uL, SST/Au, 25 pcs
Set of 25 crucibles (without pin), lids and rupture disks. The gold-plated steel crucibles have proven highly effective in the field of safety investigations. They can only be used for one measurement each. The maximum pressure is 15 MPa.

Material No.: 26731

Crucible HP, 40 uL, SST/Au, 25 pcs, pin
Set of 25 crucibles (with pin), lids and rupture disks. The gold-plated steel crucibles have proven highly effective in the field of safety investigations. They can only be used for one measurement each. The maximum pressure is 15 MPa.

Material No.: 26732

Crucible HP 270 uL, SST, pin
The crucible is made of a high temperature resistant NiCr TiAl alloy. Thanks to its thread, the crucible can be sealed using a special sealing tool. After the measurement, it can be cleaned and reused. The crucible can only be used with a furnace expander.

Material No.: 650072

Crucible HP 500 uL, SST, pin
The crucible is made of a high temperature resistant NiCr TiAl alloy. Thanks to its thread, the crucible can be sealed using a special sealing tool. After the measurement, it can be cleaned and reused. The crucible can only be used with a furnace expander.

Material No.: 650066

Platinum Crucibles for Thermal Analysis

Crucible 30 uL, Pt, 4 pcs
Platinum Crucibles

Material No.: 51140842

Crucible 70 uL, Pt, 4 pcs
Platinum Crucibles

Material No.: 51119654

Crucible 150 uL, Pt, 4 pcs
Platinum Crucibles

Material No.: 24126
