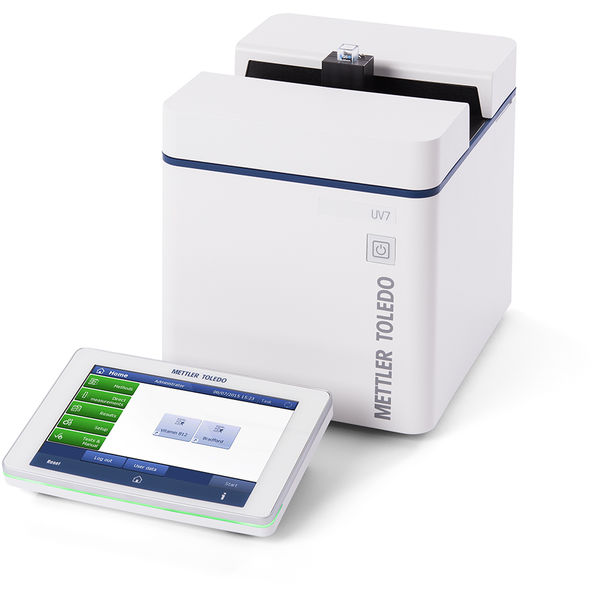

Spectrophotometer UV7

Name: Spectrophotometer UV7
Brand: Mettler Toledo

UV/Vis According to Pharmacopeia.Ideal for regulated environments; spectrometer calibration performed according to European and US pharmacopeia. Supports 21 CFR Part 11 and data integrity compliance with LabX Software. Offers advanced automation capabilities.

Excellent Performance

FastTrack™ technology ensures exceptional optical performance. Automated performance verification is possible with the optional CertiRef™ module.

Simple One Click™ Operation

The large color touchscreen features an intuitive One Click™ interface. All users have their own home screen, enabling daily tasks in just One Click.

Measurements within Seconds

Modern fiber optics are combined with a CCD array detector and Xenon flash lamp, allowing for a full spectrum scan within just 1 second.

Material No.: 30254726

Available for purchase

▲UV Vis Spectrophotometer

Call for Quote

Overview
Documentation
Accessories
More Information
More Information
Consumables
Software

Specifications - Spectrophotometer UV7

Wavelength Range (nm)	190 nm - 1,100 nm
Photometric accuracy (K2Cr2O7)	±0.005 A
Wavelength accuracy	±0.5 nm
Resolution (Toluene in hexane)	>1.9
Stray light (KCl, 198nm)	>2.3
Compatibility with LabX Software	Yes
Options	CertiRef CuvetteChanger FillPalMini Fingerprint Reader Handheld barcode scanner Immersion LinSet Printer USB-P25 Thermostating unit (10-80°C)
Shortcuts per user	24
Max. number of methods	100
Pharmacopeia compliant	Yes
User Identification	Yes
Languages	Chinese English French German Italian Japanese Portuguese Russian Spanish
Minimal Scan time	1 s
Display	7 inch QVGA Color TFT touch sensitive screen
Displayed Resolution	800x400
Dimensions (HxWxD)	8.98 in x 8.19 in x 10.04 in (228 mm x 208 mm x 255 mm)
Weight (incl. Terminal)	6.4 kg
Optics	Array
Light Source	Xenon flash lamp
Path length	1 inch 10 mm 16 mm 20 mm 30 mm 40 mm 50 mm
Application	Color Kinetic Pharma Quant Scan Water
Product Line	UV/VIS Excellence

Pharmacopeia Compliance

The optical performance fully complies with Pharmacopeia regulations (USP, Ph. Eur.).

Open Sample Area

Sample handling is fast and easy with the open sample compartment. Installation of accessories like holders is straightforward.

Clean Up Your Lab Bench

Compact layout of optical components allows for strikingly small footprint. Instrument can be operated as a standalone without the use of a PC.

Keep Control of all Costs

With no moving parts in the optical set-up, the instrument is robust and easy to maintain.

Ready to Use

The instrument is shipped ready for immediate use. The Xenon flash lamp has no warm-up time. Simply power it up and start measuring.

Documentation

Product Brochures

Brochure: UV/VIS Excellence Spectrophotometers

Discover the power of UV/VIS Excellence spectrophotometers from METTLER TOLEDO. Accurately measure absorption, transmission, and more with ease. Get r...

Brochure: LabX™ UV/VIS Software

The LabX UV/VIS spectrophotometer software is designed to streamline your workflow and eliminate transcription errors. Say goodbye to manual tasks and...

Datasheets

Datasheet - Smart UV/VIS Accessories

High precision cuvettes and holders fulfill the strictest manufacturing specifications and thus contribute to accurate and reliable results. Workflow...

Datasheet: UV/VIS Excellence Spectrophotometers

UV5 and UV7 spectrophotometers enhance your UV Vis analysis effectively. Learn more about the technical specifications and which benefits UV/VIS Excel...

Automatic Performance Verification with CertiRef™

With increasing demands for time-consuming performance verification in regulated laboratories, the CertiRef module offers a fully automated Pharmacope...

Applications

UV/VIS Applications

Download specific applications regarding UV/VIS Spectrophotometry. These proven and well-tested applications will help you to get accurate results qui...

Accessories

Barcode Reader Hand Scanner

Corded barcode reader for the reading of 1D / linear codes

Material No.: 21901297

Base for Autosampler InMotion Flex UVVIS

The InMotion™ Flex line manages sample loads from 11 large beakers (250 mL) up to 50 small glass tubes (25 mL) and combinations in between. The dedicated UV Vis base is optimized for the automation of UV Vis applications.

Material No.: 30750261

Base for Autosampler InMotion Max UVVIS

The InMotion™ Max line handles sample loads, from 24 large beakers (250 mL) up to 303 small glass tubes (25 mL) and combinations in between. The dedicated UV Vis base is optimized for the automation of UV Vis applications.

Material No.: 30750263

Base for Autosampler InMotion Pro UVVIS

The InMotion™ Pro line handles sample loads, from 23 large beakers (180 mL) up to 182 small glass tubes (25 mL) and combinations in between. The dedicated UV Vis base is optimized for the automation of UV Vis applications.

Material No.: 30750262

CuveT

Accurate temperature control with CuveT's thermostating system

Material No.: 30361677

Cuvette holder 1 cm precision

Precision cuvette holder enables mounting of 10 mm standard cuvettes.

Material No.: 30236314

Cuvette holder base

Universal Holder required to mount long path length cell holder and solid sample holder

Material No.: 30236315

Cuvette holder long pathlength

Long path length cuvette holder enables mounting of cuvettes with path lengths ranging from 5 – 50 mm

Material No.: 30254738

CuvetteChanger

Cuvette changer with 8 positions for increased workflow efficiency (temperature control option available)

Material No.: 30236313

Fiber Probe Adapter

Bring spectroscopy to the sample with the Fiber Probe Adapter

Material No.: 30526548

Fingerprint Reader

LogStraight

Material No.: 51192107

Holder solid samples

Solid sample holder enables measuring of solid sample such as films or glass.

Material No.: 30258692

Lab equip acc data writer P-56RUE

P-56RUE Thermal printer supports printing on thermal paper and continuous thermal labels, and it can be connected via RS232, USB and ethernet interfaces.

Material No.: 30094673

Lab equip acc data writer P-58RUE

P-58RUE Thermal Printer offers statistics, formulation, totaling applications and label printing with barcode. It can be connected via RS232, USB and ethernet interfaces.

Material No.: 30094674

Lab equip acc data writer USB-P25/00

Dot matrix printer, USB interface, print speed 2.3 lines per second, auto settings detection

Material No.: 30702998

Performance verification CertiRef EUP

Automated performance verification tests compliant with EU Pharmacopeia for resolution, photometric and wavelength accuracy as well as stray light. Comprehensive report documents are automatically generated.

Material No.: 30254732

Performance verification CertiRef USP

Automated performance verification tests compliant with US Pharmacopeia for resolution, photometric and wavelength accuracy as well as stray light. Comprehensive report documents are automatically generated.

Material No.: 30254733

Performance Verification LinSet Niacin

Automated performance verification module compliant with Ph. Eur. and USP. Covers photometric linearity (UV and Vis) and photometric accuracy and repeatability (Vis) tests. Comprehensive report documents are automatically generated.

Material No.: 30564230

Performance Verification LinSet PDC

Material No.: 30564229

Peristaltic pump FillPalMini

Increase your workflow efficiency with automation through FillPalMini. Easily pump samples safely into the flow cell. It can also be used for sample recovery and cuvette cleaning.

Material No.: 30254735

Test Tube Holder 13-16mm

The test tube holder allows the measurement of round cells between 13-16 mm, as used in commercially available water and food test kits, ensuring excellent measurement reproducibility on UV/VIS Excellence spectrophotometers.

Material No.: 30559260

Consumables

UV Vis Autosampler

Flow Cell Excellence Q 10 mm

Excellence Q flow cells with an optical path length of 10 millimeters are made of fused quartz glass. For measurements in the ultraviolet and visible range with a wavelength between 170 nm – 2700 nm with a volume of 440 μL.

Material No.: 30258741

UV Vis Cuvettes for Spectrophotometers

Cuvette Excellence O Optical Glass 10 mm

Excellence O macro cuvettes with an optical path length of 10 millimeters are made of fused optical glass and meet manufacturing tolerances of ± 0.01 millimeter. For measurements in the visible range with a wavelength between 320 nm – 2500 nm.

Material No.: 30258736

Cuvette Excellence O Optical Glass 50 mm

Excellence O macro cuvettes with an optical path length of 50 millimeters are made of fused optical glass and meet manufacturing tolerances of ± 0.01 millimeter. For measurements in the visible range with a wavelength between 320 nm – 2500 nm.

Material No.: 30258737

Cuvette Excellence Q Quartz Glass 10 mm

Excellence Q macro cuvettes with an optical path length of 10 millimeters are made of fused quartz glass. For measurements in the ultraviolet and visible range with a wavelength between 200 nm – 2500 nm.

Material No.: 30258738

Cuvette Excellence Q Quartz Glass 50 mm

Excellence Q macro cuvettes with an optical path length of 50 millimeters are made of fused quartz glass. For measurements in the ultraviolet and visible range with a wavelength between 200 nm – 2500 nm.

Material No.: 30258739

Software

UV Vis Spectrophotometer Software

Software LabX UV/VIS Express

Express Starter pack for LabX UV/VIS, inlcudes the express edition and one instrument license for UV/VIS

Material No.: 30247984

Software LabX UV/VIS Server

Server Starter pack for LabX UV/VIS, inlcudes the server edition, user management and auto import/export options, and one instrument license for UV/VIS

Material No.: 30247985

License LabX UV/Vis 1 Instrument

LabX UV/VIS instrument license to add a UV/VIS instrument to an existing LabX system

Material No.: 30247986
