100 mL 2-Piece EasyMax 402 Reactor
For EasyMax 402 Reactor Systems
Due to constraints caused by material availability, cost, and waste recycling, chemical and process development tend to use small reactors. Because reactor systems enable precise and accurate experimentation, detailed and accurate process development data is obtained at 50 mL to 100 mL scale. Small glass vessels are the most commonly used reactiors in research and development in the chemical and pharmaceutical industries.
The 100 mL two-piece reactor is designed not just to hold temperature probes and pH, but also process analytical probes including In Situ FTIR Spectroscopy or Particle Size Distribution tools. The 100 mL two-piece glass reactor can be used with:
- EasyMax 402 Basic
- EasyMax 402 Basic Plus
- EasyMax 402 Advanced
Specifications - 100 mL 2-Piece EasyMax 402 Reactor
| Material Number(s) | 30125690 |
Glass Reactor | Vmin: 30 mL Vnom: 100 mL Vmax: 150 mL |
Bottom Drain Valve | No |
Temperature Range | -40 to 180°C |
Pressure Range | Vacuum to ambient |
Suitable for Calorimetry | No |
Designed for | EasyMax 402 |
Cover | Glass or PTFE cover set (not included; see Accessories) |
Material | Borosilicate glass |
Stirring | Overhead stirrer (not included) |

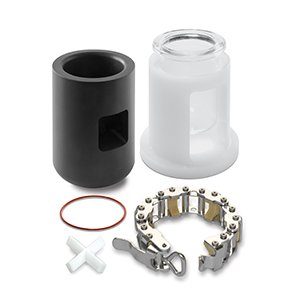

Additional Accessories Included | Reactor stand for 100 mL reactor Receptacle Reactor clamp O-ring |
