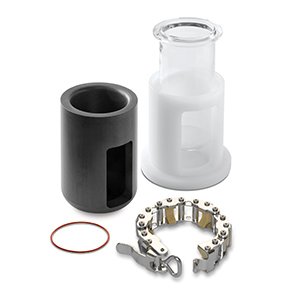

100 mL High Workup 2-Piece Glass Reactor
High Workup Volume for EasyMax 402 Reactor Systems
Small glass vessels are the most commonly-used reactors for research and development in the pharmaceutical and chemical industries. Not only can the 100 mL two-piece high workup volume reactor be used like a standard 100 mL reactor, but also offers the ability to another 100 mL of liquod to quench or workup the reaction mass within the same vessel.
The 100 mL high workup two-piece glass reactor can be used with:
- EasyMax 402 Basic
- EasyMax 402 Basic Plus
- EasyMax 402 Advanced
Specifications - 100 mL High Workup 2-Piece Glass Reactor
| Material Number(s) | 30111633 |
| Glass Reactor | Vmin: 30 mL Vnom: 100 mL Vmax: 200 mL |
| Bottom Drain Valve | No |
| Temperature Range | -40 °C to 180 °C |
| Pressure Range | Vacuum to ambient |
| Suitable for Calorimetry | No |
| Designed for | EasyMax 402 |
| Cover | Glass or PTFE cover set (not included; see Accessories) |
| Material | Borosilicate Glass |
| Stirring | Overhead stirrer (not included) |
| Additional Accessories Needed | Reactor stand for 100 mL reactor |
