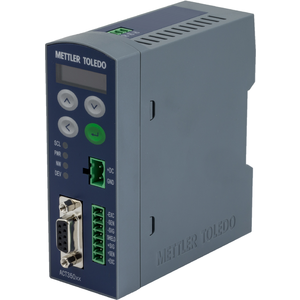

ACT350xx
Accurate Weighing Made Fast.Transmitter ACT350xx Analog PBDP
High-Speed PLC Connectivity
ACT350 enables high-speed PLC updates of up to 800 Hz filtered values with total accuracy. It is ideal for filling, sorting, fast batching processes.
Easy Setup and Monitoring
Front display, status LED and keypad for monitoring and quick setup of the unit without complicated software tools.
Economic Installation/Calibration
Compact DIN-Rail housing saves cabinet space. ACT350 supports test-weight free calibration CalFree™, which is suitable for many applications.
Material No.: 30366444001
Product Family:scale-indicator00020026
Specifications - ACT350xx
| Scale | Analog, max. 1 scale |
| Communication | PROFIBUS DP ProfiNet EtherNet/IP Ethernet TCP/IP |
| Voltage | 12-30VDC |
| Dimensions (HxWxD) | 4.3 in x 1.6 in x 4 in (110 mm x 40 mm x 100 mm) |
| Interfaces | PROFIBUS DP |
| Protection Rating | IP20 |
| Hazardous Approval | Zone 2/22 Division 2 |
| Scale Channels | 1 |
| Automation | Automation Controller |
| Mounting Type | DIN-Rail |
| Power Supply | 12 - 30 VDC |
| Display Size | 1 in |
| Housing material | Plastic |
| Application Area | Bench, Portable, and Floor OEM and System Integrators |
| Weighing Platform | SICS Analog POWERCELL SICSpro |
| Custom programmable | No |
| Legal for Trade | NTEP OIML |
