Product Inspection Equipment Checkweigher Systems CM31 Combination Inspection System

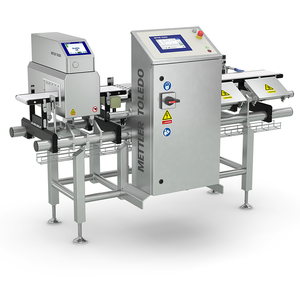

CM31 Combination Inspection System

Dependable Accuracy.

Effective Product Handling

Configurable with 80 performance and productivity enhancing options. Best-in-class product handling and accuracy to ensure flawless product flow.

Versatile for Demanding Environmenmts

Designed for endurance and reliability in wet, dry and harsh working environments. Specialized conveyors allow regular hygienic cleaning routines.

Metal Detector Integration

Combination system with an advanced Safeline metal detector. Due diligence solutions make it ideal as a CCP for best possible quality.

Material No.: 2400311000

Call for Quote
Specifications - CM31 Combination Inspection System
IP Rating
 IP54
IP65
Compatible Software
 ProdX
Connectivity
 Ethernet TCP/IP
Fieldbus
OPC UA
Inspection Solution
 Checkweighing-Metal Detection
Max Product Width
 400 mm
Max Weighing Zones
 3
Weighing Technology
 Strain Gauge
HMI
 7" Touchscreen
Packaging Type
 Bags
Bottle
Bundles
Cartons
Cases
Composite Cans
Flow Packs
Trays
VFFS
Product Flow
 Conveyor
Max Product Length
 570 mm
Frequencies
 up to 800 kHz
Inspection Application
 Contamination Detection
Weight Control
Product Characteristic
 Deep Frozen
Dry
Medium-Large Packages
Open
Round Container
Small Individual Wrapped Products
Small-Medium Packages
Wet
Industry
 Chemical
Food & Beverage
Pharma & Biotech
Weighing Accuracy
 from ±1 g
Max Product Height
 200 mm
Industry Segment
 Automotive
Bakery and Confectionary
Beer, Wine and Other Alcoholic Beverages
Cosmetics
Dairy
Fine and Specialist Chemicals
Food Additives
Meat & Poultry & Seafood
Nutraceuticals
Oils and Fats
Pet Food and Animal Feed
Ready Meals
Snack Foods
Sugar Starch and Yeast
Water and other Non-Alcoholic Beverages
Max Product Weight
 6 kg
Max Line Speed
 180 m/min
Max Throughput
 200 ppm
C21 StandardLine
C21 StandardLine
C21 StandardLine
C21 StandardLine
Datasheets

Data Collection to Support Compliance

More than ten data communication protocols to provide the fullest suite of data collection tools. Supports Industry 4.0 integration projects.

Weighing Terminal (HMI)

Systems are operated from a 7" multilingual touchscreen positioned in front of the conveyor for ease of use and maximum operator safety.

Weighing Technology

Strain gauge load cell, highly reliable solution for robust applications and solid accuracy at high speeds.

Global Service Support

A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
