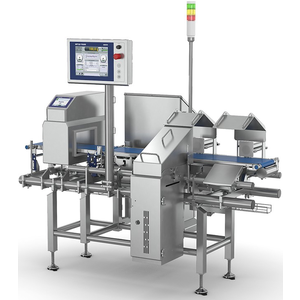

CM33 WD Combination Inspection System
The CM33 WD combines reliable weight checks and metal detection in a single rugged, space-saving machine that is IP69 rated and ideally suited for use in harsh production environments.
Easy-to-clean, compact design
The system provides easy access for cleaning and sloped surfaces throughout to prevent liquid retention and discourage bacterial contamination.
Food Standards Compliance Support
All materials with direct food contact fully comply with Regulation (EC) 1935/2004, (EU) 10/2011 and FDA regulations governing the same.
Reduced cleaning downtime
Combination system with a large range of advanced Safeline metal detectors. Due diligence solutions make it ideal as a CCP for best possible quality.
Material No.: 24003310200
Product Family:checkweighing00020016
Specifications - CM33 WD Combination Inspection System
| IP Rating | IP69 |
| Compatible Software | ProdX |
| Connectivity | Ethernet TCP/IP Fieldbus OPC UA |
| Inspection Solution | Checkweighing-Metal Detection |
| Max Product Width | 400 mm |
| Max Weighing Zones | 5 |
| Weighing Technology | EMFR |
| HMI | 12" Touchscreen 7" Touchscreen |
| Packaging Type | Bottle Bundles Glass Trays Unpackaged |
| Product Flow | Conveyor |
| Max Product Length | 570 mm |
| Frequencies | up to 800 kHz |
| Inspection Application | Contamination Detection Weight Control |
| Product Characteristic | Medium-Large Packages Open Round Container Small-Medium Packages Wet |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Weighing Accuracy | from ±0.2 g |
| Max Product Height | 200 mm |
| Industry Segment | Beer, Wine and Other Alcoholic Beverages Dairy Meat & Poultry & Seafood Oils and Fats Pet Food and Animal Feed Ready Meals Snack Foods Water and other Non-Alcoholic Beverages |
| Max Product Weight | 7 kg |
| Max Line Speed | 90 m/min |
| Max Throughput | 250 ppm |
Maximum Sensitivity and Performance
The system comes with either a Profile Advantage, Profile R / RZ or Profile Combi LS metal detector. All are high performing and application specific, and detect the smallest metal contaminants to ensure maximum brand protection and product quality.
Rapid, easy product changeover
During product teach-in, the metal detector automatically makes the necessary adjustments and automatically selects the best setup. Product changeovers are then easily carried out via the checkweigher HMI to speed up the process whilst reducing operator training needs.
Special conveyor design
The dedicated non-metal conveyor can be removed from the metal detector tunnel without the need for tools. The special conveyor design allows for quick, simple belt changes and reduces cleaning times.
High weighing precision
Maximum precision with MID certification helps to comply with weighing regulations and reduces costly product waste. Designed for endurance and reliability, with a throughput of up to 250 packs per minute and a weighing range of 25 g to 7 kg.
Intuitive 12" master touchscreen
Product changes can be carried out on the master HMI positioned at the front for increased worker safety. The HMI provides access to key data and statistics in over 30 languages and is IP69 rated, eliminating the need for a cover during cleaning.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offer allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
