Product Inspection Equipment Checkweigher Systems CM35 Combination Inspection System

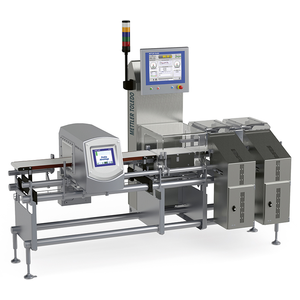

CM35 Combination Inspection System

Precision and Versatility.

Customized Product Handling

Fully customizable with 250 performance and productivity enhancing options. Complete selection of product handling variants for smoothest product flow

Unparalleled in Challenging Environments

Designed for maximum endurance and reliability in wet, dry and harsh working environments. Specialized conveyors to match all production conditions.

Advanced Metal Detector Integration

Combination system with a large range of advanced Safeline metal detectors. Due diligence solutions make it ideal as a CCP for best possible quality.

Material No.: 2400351000

CM35 AdvancedLine
Call for Quote
Specifications - CM35 Combination Inspection System
IP Rating
 IP54
IP65
Compatible Software
 ProdX
Connectivity
 Ethernet TCP/IP
Fieldbus
OPC UA
Inspection Solution
 Checkweighing-Metal Detection
Max Product Width
 400 mm
Max Weighing Zones
 7
Weighing Technology
 EMFR
HMI
 15" Touchscreen
Packaging Type
 Bags
Bottle
Bundles
Cartons
Cases
Composite Cans
Flow Packs
Trays
VFFS
Product Flow
 Conveyor
Max Product Length
 570 mm
Frequencies
 up to 800 kHz
Inspection Application
 Foreign Body Detection
Weight Control
Product Characteristic
 Deep Frozen
Dry
Medium-Large Packages
Open
Round Container
Small Individual Wrapped Products
Small-Medium Packages
Wet
Industry
 Chemical
Food & Beverage
Pharma & Biotech
Weighing Accuracy
 from ±0.01 g
Max Product Height
 200 mm
Industry Segment
 Automotive
Bakery and Confectionary
Beer, Wine and Other Alcoholic Beverages
Cosmetics
Dairy
Fine and Specialist Chemicals
Food Additives
Meat & Poultry & Seafood
Nutraceuticals
Oils and Fats
Pet Food and Animal Feed
Ready Meals
Snack Foods
Sugar Starch and Yeast
Water and other Non-Alcoholic Beverages
Max Product Weight
 10 kg
Max Line Speed
 180 m/min
Max Throughput
 600 ppm



Datasheets





CM3570 Checkweigher
CM3570 Checkweigher
CM3570 Checkweigher
CM3570 Checkweigher

Data Collection to Support Compliance

More than ten data communication protocols provide the fullest suite of data collection tools. Supports Industry 4.0 integration projects.

Weighing Terminal (HMI)

15-inch color touchscreen TFT display. Individual user access profiles with password protection. More than 30 available languages. Displays all key weight, production and configuration data.

Weighing Technology

Electromagnetic force restoration (EMFR) load cell, digital, maintenance-free, with temperature compensation, made in Switzerland.

Global Service Support

A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
