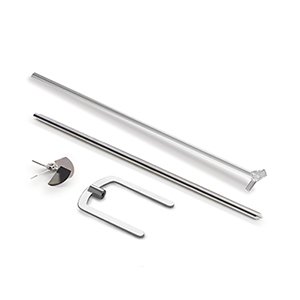

Stirrers for 400 mL 2-Piece Reactors
Stirrers for Efficient Mixing
Good mixing is necessary for all chemistries and processes. High quality, reproducible results can only be achieved when mixing of the reaction and reactants is efficient.
A wide range of mixing elements are available to support the best solution for different applications.
| Pitch-Blade Stirrer Upward | Pitch-Blade Stirrer Upward | Anchor Stirrer | |
| Dimension | 298 mm (length) 38 mm (diameter) | 298 mm (length) 38 mm (diameter) | 298/75 mm (length) 65 mm (diameter) |
| Material | Borosilicate Glass | Borosilicate Glass | Borosilicate Glass |
| Suited for | 100/400 mL 2-piece reactor | 100/400 mL 2-piece reactor | 400 mL 2-piece reactor |
| Material Number | 30111637 | 30111638 | 30111639 |
| Stirrer Shaft Metal | Stirrer Shaft for Magnetic Drive | Pitched-Blade Upward | Pitched-Blade Downward | Rushton Turbine | |
| Dimension | 298 mm (length) 8 mm (diameter) | 184 mm (length) 9.5/6 mm (diameter) | 38 mm (diameter) | 38 mm (diameter) | 25 mm (diameter) |
| Material | Alloy C-22 | Alloy C-22 | Alloy C-22 | Alloy C-22 | Alloy C-22 |
| Suited for | 100/400 mL 2-piece reactor | 100/400 mL 2-piece reactor | 100/250/400 mL 2-piece reactor | 100/250/400 mL 2-piece reactor | 50/100 mL 2-piece reactor |
| Material Number | 30111611 | 30138114 | 51162442 | 51162418 | 51161364 |
| Pitched-Blade Downward | Anchor Stirrrer | |
| Dimension | 38 mm (diameter) | 65 mm (diameter) 75 mm (height) |
| Material | Alloy C-22 | Alloy C-22 |
| Suited for | 100/250/400 mL 2-piece reactor | 400 mL 2-piece reactor |
| Material Number | 30111615 | 30111617 |
