Stirrers for 50 mL 2-Piece Reactors
Stirrers for Efficient Mixing
Good mixing is necessary for all chemistries and processes. High quality, reproducible results can only be achieved when mixing of the reaction and reactants is efficient.
A wide range of mixing elements are available to support the best solution for different applications.

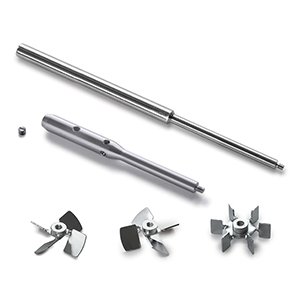

| Stirrer Shaft Metal | Stirrer Shaft for Magnetic Drive | Pitched-Blade Upward | Pitched-Blade Downward | Rushton Turbine | |
| Dimension | 218 mm (length) 8/5 mm (diameter) | 94 mm (length) 9.5/6 mm (diameter) | 25 mm (diameter) | 25 mm (diameter) | 25 mm (diameter) |
| Material | Alloy C-22 | Alloy C-22 | Alloy-C22 | Alloy-C22 | Alloy-C22 |
| Suited for | 50 mL 2-piece reactor | 50 mL 2-piece reactor | 50 mL 2-piece reactor | 50 mL 2-piece reactor | 50 mL 2-piece reactor |
| Material Number | 51161756 | 30130412 | 51161356 | 51161549 | 51161364 |
