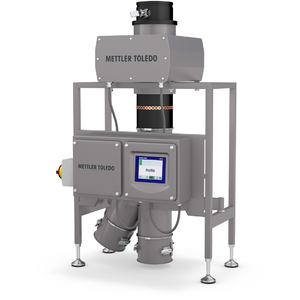

Gravity Fall Profile Metal Detector
Inspection of powders/granules.Gravity fall metal detector with full-colour touchscreen control, optimized to deliver maximum sensitivity for inspecting free falling powders and granular products
Maximum Sensitivity and Performance
Multiple ultra high tuned frequencies with enhanced noise and vibration immunity deliver exceptional sensitivity to consistently detect more metal
Simple to Use and Robust Detector Design
Proven reliability. Intuitive, easy to use icon driven touchscreen with a choice of fully automatic reject device, optimized for each application
Maximum Uptime
Condition monitoring and Reduced Test mode support maximum performance over time and allow a reduction in scheduled performance monitoring tests
Material No.: 2801546900
Product Family:MetalDetection00030016
Specifications - Gravity Fall Profile Metal Detector
| IP Rating | IP65 IP66 |
| Compatible Software | ProdX |
| Connectivity | Ethernet TCP/IP Fieldbus |
| Inspection Solution | Metal Detection |
| Max Aperture Size | 300 mm |
| HMI | 5.7" Touchscreen |
| Packaging Type | Unpackaged |
| Product Flow | Freefall/Gravity Fed |
| Frequencies | up to 800 kHz |
| Inspection Application | Contamination Detection |
| Product Characteristic | Dry Granules Powder |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Industry Segment | Agriculture and Bulk Foods Bakery and Confectionary Bulk Chemicals Dairy Fine and Specialist Chemicals Pet Food and Animal Feed Pharma Snack Foods Sugar Starch and Yeast |
Easy Integration
Zero Metal Free Zone (ZMFZ) technology enables it to be installed close to other metal structures without compromising sensitivity performance.
Optimized Configurations
Available in a choice of finishes including painted for use in dry, non-aggressive environments and stainless steel for more demanding applications.
Comprehensive Rejection Options
Choice of open diverter, Y-valve, or Sealtite reject options to suit a wide range of applications.
Reliable, precise performance
Proven detector technology delivers excellent sensitivity and stability with optimised electronic and mechanical integration, for enhanced compliance.
Designed for efficiency
Available with Reduced Test Mode which supports a significant reduction in routine testing without increasing risk and increases operator efficiency.
Optional Test Kits
ATS and integrated test facility options provide an efficient means of testing metal detector functionality and reject diverter operation.
Lifetime Service Support
METTLER TOLEDO Global Service capability can support you with correct installation, set-up, and maintainance, to maximize your return on investment.
