Product Information
Manuals
Reference Manual for the Standard Interface Command Set for your moisture analyzer to enable integration with other devices and/or systems.
Download declaration of conformity for your Moisture Analyzer model.

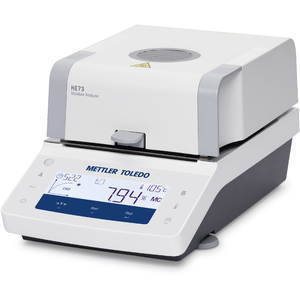

Halogen Moisture Analyzer HE73 (115V)
Great for Simple Moisture Analysis.0.01 %MC (1 mg) readability, bright backlit LCD display, progress indicator, two methods, free switch-off criterion, standard and rapid drying, 50-200°C drying temperature.
Reliable Moisture Results
A straightforward instrument with all the basic functions you need for fast and efficient moisture measurements.
Simple Operation with Method Buttons
With two method shortcut buttons the instrument is easy to use even by untrained operators. The free switch-off criterion offers extra flexibility.
Affordable Quality
With its simple high quality construction and rugged design, this instrument is suitable for both laboratory and production environments.
Material No.: 30237205
Available for purchase
Product Family:moisture-analyzer00080007
Specifications - Halogen Moisture Analyzer HE73 (115V)
| Min. Recommended Moisture Range (%MC) | 1 |
| Readability MC | 0.01 % |
| Drying Programs | Rapid Standard |
| Repeatability (sd) with 2g Sample | 0.15 % |
| Repeatability (sd) with 10g Sample | 0.05 % |
| Method Storage (max.) | 2 |
| Results Storage | 1 |
| Result Handling | Strip printing |
| Switch-off criteria | 1 Automatic (SOC 3) Freely Definable (1 mg/ 10-140 s) Timed |
| Test & Adjust | SmartCal Temperature (100 °C/160 °C) Weight |
| Drying Temperature | 50 °C – 200 °C |
| Temperature Increments | 1 °C |
| Display Mode | %AD %AM %DC %MC g |
| Application Flexibility | Low |
| Interfaces | RS232 |
| Languages | English |
| Industry | Food Others |
| Maximum Capacity | 71 g |
| Voltage | 115V |
Moisture Know-How Gets You Started
Profit from our moisture method collection. Our tried and tested methods help you to find the right method for your sample.
Documentation
Accessories
P-56RUE Thermal printer supports printing on thermal paper and continuous thermal labels, and it can be connected via RS232, USB and ethernet interfaces.
Material No.: 30094673
P-58RUE Thermal Printer offers statistics, formulation, totaling applications and label printing with barcode. It can be connected via RS232, USB and ethernet interfaces.
Material No.: 30094674
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, built-in real-time clock, zero/tare key
Material No.: 11124303
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, date and time function, zero/tare key, statistics and totaling application
Material No.: 11124309
Weight 50g F1AC PL E
OIML F1 single knob weight with adjusting cavity and a plastic box
Material No.: 30402574
