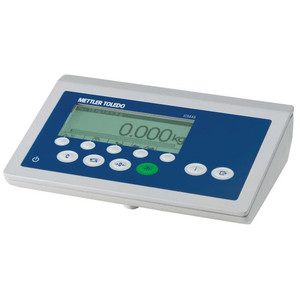

ICS445
Speed up Production.The ICS445 Simple counting solutions have been designed for real industrial counting.
Optimize Your Production Processes
The Straight Weighing solution optimizes your production processes in Straight Weighing applications.
Durable and Rugged
Tough enough for industrial environments with aluminum die cast housing and robust foil keypad.
Dust Proof
Optimal for usage in dusty environment thanks to IP65 ingress protected housing.
Material No.: 64087988005
Product Family:scale-indicator00020041
Specifications - ICS445
| Scale | Analog IDNet Precision |
| Communication | Digital I/O Ethernet TCP/IP RS232 RS422/485 USB device/host WLAN |
| Mounting Flexibility | Column Desk Wall |
| Voltage | 100 - 240 VAC |
| Display | Graphic LCD with backlight |
| Dimensions (LxHxW) | 6.5 in x 3.1 in x 9.8 in (164 mm x 78 mm x 284 mm) |
| Housing | Aluminum Die Casting |
| Interfaces | Digital I/O Ethernet TCP/IP RS232 RS422/485 USB device/host WLAN |
| Protection Rating | IP65 |
| Hazardous Approval | Non-Hazardous Area |
| Scale Channels | 2 |
| Power Supply | 100 - 240 VAC, Internal Battery |
| Display Size | 5 in |
| Housing material | Aluminum |
| Application Area | Bench, Portable, and Floor |
| Automation | Interactive Weighing |
| Material | Aluminum die casting |
| Platform Type | Terminals and Indicators |
| Scale Interface | Analog IDNet Precision |
| Mounting Type | Column Desk Wall |
| Interfaces (Optional) | Discrete I/O Ethernet RS422 RS485 USB WLAN |
| Weighing Platform | Analog IDNet Precision |
| Application | Checkweighing Counting Filling Portioning Totalizing |
| Hygienic Design | No |
| Custom programmable | No |
| Legal for Trade | NTEP OIML |
| Applications | Counting Filling Portioning Totalizing |
| Data Management | Convenient Printing: Easy creation of print & label templates Custom Print Formats: Odette, AIAG, Galia etc. |
Documentation
Accessories
Hands-free Accessories, Stands & Displays & Data Readers
Auxiliary display with large LCD backlit display, powered by the balance (RS232 interface)
Material No.: 12122381
