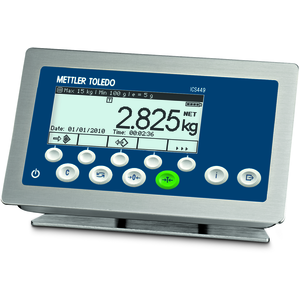

Weighing Terminal ICS4_9
Speed up Production.The ICS449 is specially developed for easy manual checkweighing.
Optimize Your Production Processes
Perfect solution for Simple and Over/Under checkweighing. Configurable indicator shows exactly what you need. ColorWeight function offers color settings
Resist Wet and Harsh 24/7
All parts have been built according to the latest hygienic design guidelines supporting an easy, fast and efficient cleaning procedure.
Easy to Operate
All you need for Simple and Over/Under checkweighing. Use the numeric keypad for changing of pre-tare values.
Material No.: 64087984006
Product Family:scale-indicator00020040
Specifications - Weighing Terminal ICS4_9
| Scale | Precision Analog IDNet |
| Communication | RS232 WLAN Ethernet TCP/IP USB device/host Digital I/O RS422/485 |
| Mounting Flexibility | Wall Column Desk |
| Voltage | 100 - 240 VAC Internal Battery |
| Display | Graphic LCD with backlight |
| Dimensions (LxHxWxD) | 9.13 in x 4.53 in x 9.13 in x 5.2 in (232 mm x 115 mm x 232 mm x 132 mm) |
| Housing | Stainless Steel V2A (AISI 304) |
| Interfaces | RS232 WLAN USB device/host Ethernet TCP/IP Digital I/O RS422/485 |
| Protection Rating | IP69k IP68 |
| Hazardous Approval | Non-Hazardous Area |
| Scale Channels | 2 |
| Power Supply | 100 - 240 VAC, Internal Battery |
| Display Size | 5 in |
| Housing material | Stainless Steel |
| Application Area | Bench, Portable, and Floor |
| Automation | Interactive Weighing |
| Material | Stainless Steel V2A (AISI 304) |
| Platform Type | Terminals and Indicators |
| Scale Interface | Precision Analog IDNet |
| Mounting Type | Wall Column Desk |
| Interfaces (Optional) | USB Ethernet RS422 RS485 WLAN Discrete I/O |
| Weighing Platform | Precision Analog IDNet |
| Application | Checkweighing Filling Totalizing Counting Portioning |
| Hygienic Design | Yes |
| Custom programmable | No |
| Legal for Trade | NTEP OIML |
| Applications | Check weighing Filling Totalizing Counting Portioning |
Vivid Display
The ColorWeight® functionality improves your throughput by providing fast and simplified changing of Over/Under parameters.
