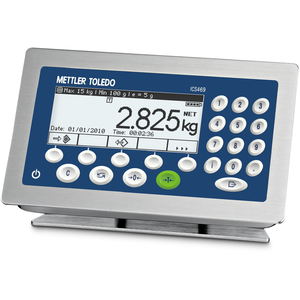

Weighing Terminal ICS4_9
Speed up Production.The ICS469 Series fulfils the greatest multitude of system integration and production line requirements to set new standards in integration versatility.
Optimize Your Production Processes
Perfect solution for Simple and Over/Under checkweighing. Configurable indicator shows exactly what you need. ColorWeight function offers color settings
Resist Wet and Harsh 24/7
All parts have been built according to the latest hygienic design guidelines, supporting an easy, fast, and efficient cleaning procedure
Easy to Operate
All you need for Simple and Over/Under checkweighing. Use the numeric keypad to change the pre-tare values
Material No.: 64087984008
Product Family:scale-indicator00020038
Specifications - Weighing Terminal ICS4_9
| Scale | Analog IDNet Precision |
| Communication | Digital I/O Ethernet TCP/IP RS232 RS4222/485 USB device/host WLAN |
| Mounting Flexibility | Column Desk Wall |
| Voltage | 100 - 240 VAC Internal Battery |
| Display | Graphic LCD with backlight |
| Dimensions (LxHxWxD) | 9.13 in x 4.53 in x 9.13 in x 5.2 in (232 mm x 115 mm x 232 mm x 132 mm) |
| Housing | Stainless Steel V2A (AISI 304) |
| Interfaces | Digital I/O Ethernet TCP/IP RS232 RS422/485 USB device/host WLAN |
| Protection Rating | IP68 IP69k |
| Hazardous Approval | Non-Hazardous Area |
| Scale Channels | 2 |
| Power Supply | 100 - 240 VAC, Internal Battery |
| Display Size | 5 in |
| Housing material | Stainless Steel |
| Application Area | Bench, Portable, and Floor |
| Automation | Interactive Weighing |
| Material | Stainless Steel V2A (AISI 304) |
| Platform Type | Terminals and Indicators |
| Scale Interface | Analog IDNet Precision |
| Mounting Type | Column Desk Wall |
| Interfaces (Optional) | Discrete I/O Ethernet RS422 RS485 USB WLAN |
| Weighing Platform | Analog IDNet Precision |
| Application | Checkweighing Counting Filling Portioning Totalizing |
| Hygienic Design | Yes |
| Custom programmable | No |
| Legal for Trade | NTEP OIML |
| Applications | Check weighing Counting Filling Portioning Totalizing |
| Data Management | Convenient Printing: Easy creation of print & label templates Custom Print Formats: Odette, AIAG, Galia etc. |
Vivid Display
The ColorWeight® functionality improves your throughput by providing fast and simplified changing of Over/Under parameters
