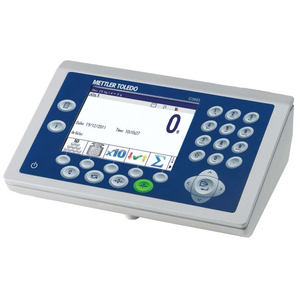

ICS685
Highly Accurate Results.The ICS685 multi-functional scales are ideal for advanced weighing applications. Intuitive menus, user-definable function keys, a large innovative display and customizable prompting make operations fast and precise.
Efficient Weighing Procedures
The ICS685 solution stands for total flexibility. Benefit from its wide range of applications, easy user management and powerful internal database.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing and robust foil keypad.
Dust Proof
Optimal for usage in dusty environment thanks to IP65 ingress protected housing.
Material No.: 64087989001
Product Family:scale-indicator00020037
Specifications - ICS685
| Scale | Analog IDNet Precision |
| Communication | Digital I/O Ethernet TCP/IP RS232 USB device/host WLAN |
| Mounting Flexibility | Column Desk Wall |
| Voltage | 100 - 240 VAC Internal Battery |
| Display | Color TFT screen |
| Dimensions (LxHxW) | 6.5 in x 3.1 in x 9.8 in (164 mm x 78 mm x 284 mm) |
| CalFREE Calibration | No |
| Housing | Aluminum Die Casting |
| Interfaces | Digital I/O Ethernet TCP/IP RS232 RS422/485 USB device/host WLAN |
| Protection Rating | IP65 |
| Hazardous Approval | Non-Hazardous Area |
| Scale Channels | 4 |
| Power Supply | 100 - 240 VAC, Internal Battery |
| Display Size | 6 in |
| Housing material | Aluminum |
| Application Area | Bench, Portable, and Floor |
| Automation | Interactive Weighing |
| Material | Aluminum die casting |
| Platform Type | Terminals and Indicators |
| Scale Interface | Analog IDNet Precision |
| Mounting Type | Desk |
| Interfaces (Optional) | Discrete I/O Ethernet RS422 RS485 USB WLAN |
| Weighing Platform | Analog IDNet Precision |
| Application | Checkweighing Classification Counting Filling Formulation Pick Pack Portioning Totalizing |
| Hygienic Design | No |
| Custom programmable | No |
| Legal for Trade | NTEP OIML |
| Applications | Classification Counting Filling Formulation Portioning Totalizing |
| Data Management | Comprehensive Statistics: Average Piece Weight, Min., Max. Values Fast Data Import & Export: With USB Stick or directly via Ethernet Powerful Database: Stores up to 5,000 articles Smart Printing: Predefined & User-definable print & label templates |
Documentation
Accessories
Hands-free Accessories, Stands & Displays & Data Readers
Auxiliary display with large LCD backlit display, powered by the balance (RS232 interface)
Material No.: 12122381
