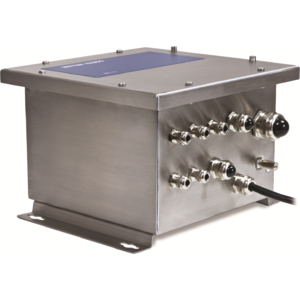

Weighing Terminal IND131xx
Weigh-Comply-Control-Connect.IND131 J-Box Pro. Weigh. Term.
Superior Ingress Protection
The Junction Box unit is IP69K rated for protection against high pressure water jets. This is ideal for wash-down applications.
Backup and restore utility
The SD memory card utility allows easy backup and restore of setup information along with the convenience of portability.
Calibration from PLC
Choose from traditional, Step, CalFREE™ calibration methods or the new calibration from PLC feature to eliminate operator error.
Material No.: 64087994002
Product Family:scale-indicator00020051
Specifications - Weighing Terminal IND131xx
| Communication | PROFIBUS DP RS232 EtherNet/IP |
| Voltage | AC Version (with line cord) Universal power supply (85-264 VAC) |
| Dimensions (HxWxD) | 246 mm x 251 mm x 123 mm |
| Protection Rating | IP65 |
| Hazardous Approval | Zone 2/22 Division 2 |
| Scale Channels | 1 |
| Automation | Automation Controller |
| A/D Update Rate | 366 Hz |
| Load Cell | 1 to 8 350 Ω analog load cells |
| Mounting Type | Junction Box |
| Power Supply | 100 - 240 VAC |
| Displayed Resolution | 100,000d (max) |
| DIO/COM2 Serial Port | Relay |
| Sensitivity (Minimum/Approved) | 0.1 µV / 0.6 µV |
| Display Size | No Display |
| Housing material | Stainless Steel |
| Application Area | Tank, Silo, Hopper, and Bin OEM and System Integrators Bench and Floor |
| Weighing Platform | Analog |
| Application | Dosing Net Content Control Filling |
| Custom programmable | No |
| Legal for Trade | NTEP OIML |
