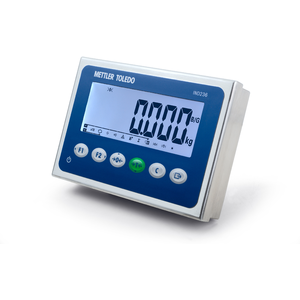

Weighing Terminal IND236
Cost-effective and reliable.IND236 Harsh Environment Weighing Indicator
Features for Easy Use
Intuitive icons provide indication of operational status and 40mm weight display with backlight provides readability under varying light conditions.
Common Weighing Applications Included
Includes checkweighing, counting, animal weighing and weight accumulation applications. Pre-defined print templates provide a transaction record.
Multiple Connectivity Capabilities
In addition to one standard RS232 port, additional connectivity can be added with RS232/RS422/RS485; USB device; or Discrete I/O.
Material No.: 30079952001
Product Family:scale-indicator00020046
Specifications - Weighing Terminal IND236
| Scale | Analog |
| Communication | RS232/422/485 USB |
| Application Software | Counting Over/under checkweighing |
| Communication (Optional) | Discrete I/O RS422 RS485 USB |
| Mounting Flexibility | Column Desk Wall |
| Voltage | 100 - 240 VAC |
| Display | 7 segment LCD with backlight |
| Dimensions (LxHxW) | 5.9 in x 3.7 in x 8.7 in (150 mm x 93.3 mm x 220 mm x 93.3 mm) |
| Display Mounting Flexibility | Unit integrated |
| Housing | Stainless Steel |
| Interfaces | RS232/422/485 USB |
| Protection Rating | IP66 IP67 |
| Hazardous Approval | Non-Hazardous Area |
| Scale Channels | 1 |
| Power Supply | 100 - 240 VAC, Internal Battery |
| Display Size | 6 in |
| Housing material | Stainless Steel |
| Application Area | Bench, Portable, and Floor |
| Automation | Interactive Weighing |
| Material | Stainless Steel |
| Input Voltage | 115 V |
| Load Cell | 1 to 4, 350 Ω analog load cells |
| Mounting Type | Column Desk Wall |
| Resolution (Certified) | 10,000 |
| Weighing Platform | Analog |
| Application | Animal Weighing Checkweighing Counting |
| Hygienic Design | No |
| Custom programmable | No |
| Legal for Trade | NTEP OIML |
| Applications | Counting |
| Data Management | Printing: Application specific print templates |
