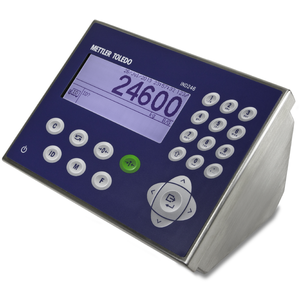

Weighing Terminal IND246 POWERCELL
Transactional Indicator for POWERCELL.The IND246 Powercell® offers digital performance for Straight Weighing. Includes serial port (RS232/RS485) and micro SD memory slot. Second optional communication ports are available: Serial, Ethernet TCP/IP, and USB device.
One Indicator - Multiple Applications
The IND246 indicator includes basic weighing, animal weighing, checkweighing, counting, peak weight measurement, and vehicle weighing applications.
Increased Uptime
Performance Logs record each load cell's performance parameters at a user-set frequency to help monitor overall scale performance.
Vivid and Prominent Weight Display
The transflective backlit graphic LCD display is well-suited for indoor or outdoor operation with easy viewing from as far as 30'/10m away.
Material No.: 30426446002
Product Family:scale-indicator00020025
Specifications - Weighing Terminal IND246 POWERCELL
| Scale | max. 1 scale |
| Communication | USB device RS4222/485 RS232 Ethernet TCP/IP Digital I/O |
| Mounting Flexibility | Wall Column Desk |
| Voltage | 100 - 240 VAC |
| Dimensions (HxWxD) | 5.75 in x 9 in x 6.5 in (146 mm x 230 mm x 165 mm) |
| Housing | Stainless Steel |
| Interfaces | USB Device RS232 Ethernet TCP/IP Digital I/O RS422/485 |
| Protection Rating | IP66 |
| Hazardous Approval | Non-Hazardous Area |
| Scale Channels | 1 |
| Automation | Interactive Weighing |
| Memory | MicroSD |
| Load Cell | POWERCELL PDX Up to 12 |
| Mounting Type | Wall Column Desk |
| Power Supply | 100 - 240 VAC, Internal Battery |
| Display Size | 5 in |
| Housing material | Stainless Steel |
| Application Area | Tank, Silo, Hopper, and Bin Vehicle and Rail Bench, Portable, and Floor |
| Weighing Platform | POWERCELL |
| Application | Animal Weighing Peak Weight Checkweighing Vehicle Weighing |
| Custom programmable | No |
| Applications | Animal Weighing Pick&Pack Check weighing |
| Legal for Trade | NTEP OIML |
