IND780 Harsh

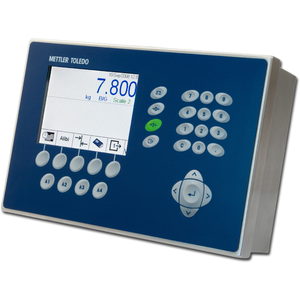

High Performance Weighing.IND780 Harsh Environment Weighing Indicator
SmartTrac Shows It All
Enhanced graphical display providing improved process visualization for material transfer or over/under weighing to increase productivity and quality.
Multi-channel Concurrent Weighing
Concurrent measurement channels in one indicator and fast A/D performance at 366 Hz promote hardware cost savings at increased throughput and accuracy
Embedded Maintenance Technician
Embedded diagnostic tools help avoid costly unscheduled breakdowns and quality defects by predicting failures and maintaining calibration compliance
Material No.: 64087983001
Product Family:scale-indicator00020015
Specifications - IND780 Harsh
| Scale | Precision Analog IDNet POWERCELL |
| Communication | ProfiNet USB Host RS232 Ethernet TCP/IP Digital I/O |
| Mounting Flexibility | Wall Column Desk |
| Voltage | 100 - 240 VAC |
| Dimensions (HxWxD) | 235 mm x 200 mm x 299 mm |
| Housing | Harsh Stainless Steel |
| Interfaces | ProfiNet USB Host RS232 Ethernet TCP/IP Digital I/O RS422/485 |
| Protection Rating | IP69k |
| Hazardous Approval | Zone 2/22 Division 2 |
| Scale Channels | 4 |
| Automation | Automation Controller |
| Mounting Type | Wall Column Desk |
| Power Supply | 100 - 240 VAC |
| Display Size | 6 in |
| Housing material | Stainless Steel |
| Application Area | Tank, Silo, Hopper, and Bin Hazardous Area Vehicle and Rail Custom Programmable OEM and System Integrators |
| Weighing Platform | Precision Analog |
| Application | Dosing Blending Checkweighing Vehicle Weighing Filling Tank Vessel |
| Custom programmable | Yes |
| Applications | Filling |
| Legal for Trade | NTEP OIML |
