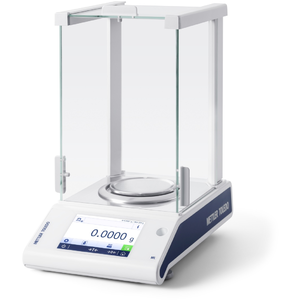

Analytical Balances ML104T/31

Big Features Go Compact.Compact balance for versatile use: 120 g capacity, 0.1 mg readability, 4.5" touchscreen, FACT, LevelControl, battery operation

Intuitive Operation

The large 4.5" color TFT touchscreen features an intuitive user interface with clear icons. It's easy to operate even with cloth or rubber gloves.

High-performance Weighing Cell

The renowned MonoBloc weighing cell delivers consistently reliable results. Built-in overload protection safeguards performance over its lifetime.

Compact and Convenient

The compact design makes the most of your workspace, while offering powerful functionalities to support you in your daily tasks.

Material No.: 64089573

Available for purchase

▲Analytical Balances

Call for Quote

Overview
Documentation
Accessories
More Information
More Information
Consumables
Software

Specifications - Analytical Balances ML104T/31

Maximum Capacity	120 g
Readability	0.1 mg
Repeatability, typical	0.08 mg
Minimum Weight (U=1%, k=2), typical	16 mg
Settling Time	2 s
Adjustment	Internal (automatic/FACT)
Interfaces	RS232 (integrated/optional) USB-A (to device) USB-B (to device)
Temperature accuracy (±)	2 ppm/°C
Display	4.5" color TFT touchscreen
Minimum Weight (USP, 0.1%, typical)	160 mg
Legal for Trade	No
Battery Option	Yes
Weighing Pan Diameter	90 mm
Dimensions (HxWxD)	331 mm x 193 mm x 290 mm
Approved Balance	No
Balance Line	ML-T
Balance Type	Analytical Balance
Linearity, typical	0.06 mg
Features	Battery option Leveling guidance Password protection User management
Linearity ±	0.2 mg
Applications	Back-weighing Check weighing Counting Density Dynamic weighing Factor weighing Formulation Percent weighing Totaling Weighing
Housing	Die-cast aluminum, plastic ABS
Level	Advanced $$
Power	AC Power supply and battery operation
Resolution	0.1 mg
Hygienic Design	Yes

Battery operation offers portability

Take your balance anywhere! Up to 10 hours battery run-time makes your balance ideal for stocktaking or fieldwork.

MinWeigh function ensures safe weighing

The MinWeigh function ensures you always weigh in the safe weighing range. User-defined values can be programmed for additional safety.

Multiple interfaces for easy integration

Enjoy seamless processes. Connect a printer, barcode reader or even a PC via USB or RS232. Or connect wirelessly with the Bluetooth option.

Easy to clean

Remove, clean and reinsert all of the QuickLock draft shield glass panels in just a few simple steps without tools and without moving the balance.

Documentation

Datasheets

Datasheet: ML-T Analytical Balances

Small in Size, Big on Features

Datasheet: EasyDirect Balance Software

Download this datasheet to learn more about specifications of EasyDirect Balance Software.

Manuals

User Manual: ML-T

Easy reference guide to help you quickly set-up and start using your balance.

Reference Manual: ML-T Balances (Software version 4.20)

Full instructions and technical guidance for safe and correct usage of your balance.

Reference Manual: MT-SICS Interface Commands - Standard and Advanced Laboratory Balances

This manual describes the MT-SICS interface commands required to control your balance by an IT system and is valid for all Standard Level and Advance...

Reference Manual: ML-T Balances (Software version 4.02 and lower)

Full instructions and technical guidance for safe and correct usage of your balance.

Accessories

Auxiliary Display Lab Balance

Auxiliary display with large LCD backlit display, powered by the balance (RS232 interface)

Material No.: 12122381

Bluetooth dongle v2.0 RS232 single

Single Bluetooth RS232 serial adapter ADP-BT-S for wireless connection

Material No.: 30086494

Cable RS9-RS9 (M/W) 1m

RS232 9-pin male to female cable for connecting a balance to a printer, PC or titrator

Material No.: 11101051

Cable USB TO RS232 CONVERTER,FTDI

RS232 - USB converter cable to connect a balance (RS232) to a USB port

Material No.: 64088427

Calibrated sinker 10 cm3

Glass sinker 10 cm³ for the gravimetric density determination of liquids. Includes a calibration certificate from an accredited laboratory. The sinker is suspended by a platinum wire, which due to its chemical inertia, ensures suitability for most liquids.

Material No.: 210672

CarePac OIML 5g/100g F2 Cal

CarePac® Small 100g F2 / 5g F2 inlcuding accessories for handling and cleaning and a calibration certificate

Material No.: 30550615

CPS,100G, 5G, ASTM,1,1,C

CarePac® small 100g /5g ASTM 1 class, including accessories for handling and cleaning and a calibration certificate

Material No.: 11123102

Density Kit Std. & Adv. legacy

Density Kit for MS, ML, ME, JET, and JE

Material No.: 30535760

Lab equip acc data writer P-56RUE

P-56RUE Thermal printer supports printing on thermal paper and continuous thermal labels, and it can be connected via RS232, USB and ethernet interfaces.

Material No.: 30094673

Lab equip acc data writer P-58RUE

P-58RUE Thermal Printer offers statistics, formulation, totaling applications and label printing with barcode. It can be connected via RS232, USB and ethernet interfaces.

Material No.: 30094674

Lab equip acc data writer RS-P26/01

Dot matrix printer, RS232 interface, print speed 2.3 lines per second, built-in real-time clock, zero/tare key

Material No.: 11124303

Lab equip acc data writer USB-P25/01

Dot matrix printer, USB interface, print speed 2.3 lines per second, auto settings detection

Material No.: 11124301

License EasyDirect Balance 10 Instr.

Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30540473

License EasyDirect Balance 3 Instruments

Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30539323

Protective Cover ML-T 3&4 Digits

Material No.: 30241514

Re-calibrated sinker 10cm3

Re-calibration service for the glass sinker of density kits.

Material No.: 210674

Sinker 10cm3

Displacement body for density kit

Material No.: 210260

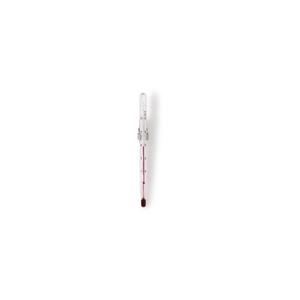

Thermometer calibrated

Thermometer for density determination including a calibration certificate

Material No.: 11132685

Wireless Dongle MTICWD-100

Wireless dongle with Wi-Fi and Bluetooth capabilities for MS-TS & ML-T laboratory balances

Material No.: 30412536

Consumables

Software

EasyDirect Balance Software
