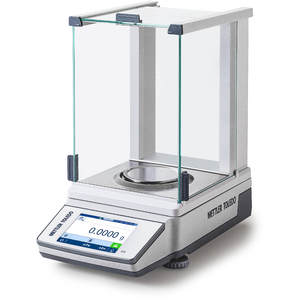

Analytical Balance MR304

All-Round Versatility.Reliable performance for all your weighing needs. 320 g capacity; 0.1 mg readability; connectivity via Ethernet, USB, RS232; guided leveling; automatic adjustment; user management; power-saving mode; easy cleaning

Perfect for All Environments

These balances deliver consistently accurate results whether you’re weighing in a busy lab or in the challenging conditions of the factory floor.

Easy Integration

Multiple interfaces and MT-SICS commands make it simple to connect your MR balance to PLC and MES systems as well as other lab instruments.

Designed for Your Convenience

Automatic adjustment, guided leveling, and ErgoDoors simplify weighing tasks. Solidly built with smooth surfaces and rounded edges for easy cleaning.

Material No.: 30666209

Available for purchase

Call for Quote
Lab Balance Finder
Balance Finder
Balance Finder

Use the Balance Finder to receive your personalized recommendation in a few clicks.

Start Finder
Specifications - Analytical Balance MR304
Maximum Capacity
320 g
Readability
0.1 mg
Repeatability, typical
0.08 mg
Minimum Weight (U=1%, k=2), typical
16 mg
Settling Time
2 s
Adjustment
Internal (automatic/FACT)
Interfaces
Bluetooth (optional)
Ethernet (LAN)
RS232
USB-A
USB-C
Display
4.5" color TFT touchscreen
Minimum Weight (USP, 0.1%, typical)
160 mg
Weighing Pan Diameter
90 mm
Dimensions (HxWxD)
354 mm x 209 mm x 351 mm
Approved Balance
No
Balance Line
MR
Balance Type
Analytical Balance
Level
Advanced $$
Features
Leveling guidance
User management
Recommended for
Food & Beverage

Easy-to-Clean QuickLock Draft Shield

The draft shield has been cleverly designed with fast-release QuickLock glass panels that can be quickly removed without tools and without moving the balance. The drip tray simply lifts out and all parts are dishwasher-safe.

Multiple Interfaces

The built-in interfaces support error-free data transfer to a PC, peripheral devices, or local networks. Drop-to-cursor functionality is a simple solution that lets you send results to a spreadsheet on your PC without additional software.

User Management

By setting up different user groups and profiles, operators see just the functions and applications they need to carry out their tasks, simplifying processes and reducing errors. Passcode protection prevents settings from being modified accidentally.

Automatic Internal Adjustment

To ensure ongoing accuracy, you can set the balance to perform an adjustment automatically using the internal test weights. The adjustment can be performed at a scheduled time or whenever the balance detects a change in the ambient temperature.

Power-Saving Mode

To save energy and costs, as well as protect the environment, you can configure when your balance will automatically go into its ultra-low power mode, for example overnight and at weekends. It will also warm up to be ready for work at the time you choose.

Your Trusted Partner in Weighing

Incorporating decades of weighing expertise and innovation, our laboratory balances don’t compromise on quality or weighing performance. With precise and reliable balances, we are your long-term partner in every weighing measurement you make.

Flexible Service Offering

Customize your service package to meet your individual needs. Our service team will always be there to support you with regular servicing, calibration, repair, spare parts, and helpful advice to ensure optimum performance.

Documentation

Datasheets

Datasheet: MR Analytical Balances
Download this datasheet to learn more about the specifications and accessories of MR Analytical Balances.

Accessories

Auxiliary display with large LCD backlit display, powered by the balance (RS232 interface)

Material No.: 12122381

Paired Bluetooth RS232 serial adapter ADP-BT-S for wireless connection

Material No.: 30086495

Single Bluetooth RS232 serial adapter ADP-BT-S for wireless connection

Material No.: 30086494

RS232 - USB converter cable to connect a balance (RS232) to a USB port

Material No.: 64088427

CarePac OIML 10g/200g F2 Cal
CarePac® Small 200g F2 / 10g F2 inlcuding accessories for handling and cleaning and a calibration certificate

Material No.: 30550614

CPS,200G,10G, ASTM,1,1,C
CarePac® small 200g /10g ASTM 1 class, including accessories for handling and cleaning and a calibration certificate

Material No.: 11123101

Footswitch, optional switch for remote operation, USB connection

Material No.: 30312558

Dot matrix printer, USB interface, print speed 2.3 lines per second, auto settings detection

Material No.: 30702998

Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30540473

Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30539323

Antistatic funnels in a 50-pack for secure powder weigh-in to volumetric flasks

Material No.: 30061260

Weight 10g F2 PL C E
Single F2 OIML class knob weight with adjusting cavity in a plastic box including a calibration certificate

Material No.: 30406427

Weight 200g F2 PL C E
Single F2 OIML class knob weight with adjusting cavity in a plastic box including a calibration certificate

Material No.: 30406431

WEIGHT,10G,ASTM,1, PCASE,CAL
Single ASTM 1 class knob weight in a plastic box including a calibration certificate

Material No.: 11123481

WEIGHT,200G,ASTM,1,PCASE,CAL
Single ASTM 1 class knob weight in a plastic box including a calibration certificate

Material No.: 11123485

Consumables

Manual Sample Dosing

Antistatic funnels in a 50-pack for secure powder weigh-in to volumetric flasks

Material No.: 30061260

Software

EasyDirect Balance Software

Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30539323

Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30540473
