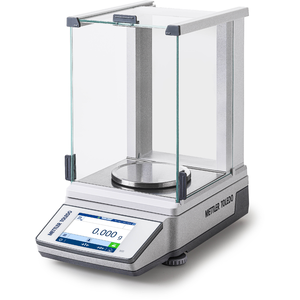

Precision Balance MR603

All-Round Versatility.Reliable performance for all your weighing needs. 620 g capacity; 1 mg readability; connectivity via Ethernet, USB, RS232; guided leveling; automatic adjustment; user management; power-saving mode; easy cleaning

Perfect for All Environments

These balances deliver consistently accurate results whether you’re weighing in a busy lab or in the challenging conditions of the factory floor.

Easy Integration

Multiple interfaces and MT-SICS commands make it simple to connect your MR balance to PLC and MES systems as well as other lab instruments.

Designed for Your Convenience

Advanced functions, such as automatic adjustment and guided leveling, simplify weighing, while smooth surfaces and rounded edges make cleaning easy.

Material No.: 30666221

Available for purchase

Call for Quote
Lab Balance Finder
Balance Finder
Balance Finder

Use the Balance Finder to receive your personalized recommendation in a few clicks.

Start Finder
Specifications - Precision Balance MR603
Maximum Capacity
620 g
Readability
1 mg
Minimum Weight (U=1%, k=2), typical
140 mg
Interfaces
Bluetooth (optional)
Ethernet (LAN)
RS232
USB-A
USB-C
Adjustment
Internal (automatic/FACT)
Repeatability, typical
0.7 mg
Settling Time
1.5 s
Minimum Weight (USP, 0.1%, typical)
1.4 g
Weighing Pan Diameter
120 mm
Display
4.5" color TFT touchscreen
Dimensions (HxWxD)
354 mm x 209 mm x 351 mm
Approved Balance
No
Balance Line
MR
Balance Type
Precision Balance
Level
Advanced $$
Features
Leveling guidance
User management

Multiple Interfaces

The built-in interfaces support error-free data transfer to a PC, peripheral devices, or local networks. Drop-to-cursor functionality is a simple solution that lets you send results to a spreadsheet on your PC without additional software.

User Management

By setting up different user groups and profiles, operators see just the functions and applications they need to carry out their tasks, simplifying processes and reducing errors. Passcode protection prevents settings from being modified accidentally.

Automatic Internal Adjustment

To ensure ongoing accuracy, you can set the balance to perform an adjustment automatically using the internal test weights. The adjustment can be performed at a scheduled time or whenever the balance detects a change in the ambient temperature.

Power-Saving Mode

To save energy and costs, as well as protect the environment, you can configure when your balance will automatically go into its ultra-low power mode, for example overnight and at weekends. It will also warm up to be ready for work at the time you choose.

Easy-to-Clean QuickLock Draft Shield

The draft shield has been cleverly designed with fast-release QuickLock glass panels that can be quickly removed without tools and without moving the balance. The drip tray simply lifts out and all parts are dishwasher-safe.

Your Trusted Partner in Weighing

Incorporating decades of weighing expertise and innovation, our laboratory balances don’t compromise on quality or weighing performance. With precise and reliable balances, we are your long-term partner in every weighing measurement you make.

Flexible Service Offering

Customize your service package to meet your individual needs. Our service team will always be there to support you with regular servicing, calibration, repair, spare parts, and helpful advice to ensure optimum performance.

Documentation

Accessories

Steel security cord. Detachable lock with T-bar mechanism.

Material No.: 11600361

Auxiliary display with large LCD backlit display, powered by the balance (RS232 interface)

Material No.: 12122381

Corded USB barcode scanner for the reading of 1D / linear codes

Material No.: 30417466

Paired Bluetooth RS232 serial adapter ADP-BT-S for wireless connection

Material No.: 30086495

Single Bluetooth RS232 serial adapter ADP-BT-S for wireless connection

Material No.: 30086494

RS232 - USB converter cable to connect a balance (RS232) to a USB port

Material No.: 64088427

CarePac OIML 20g/500g F2 Cal
CarePac® Small 500g F2 / 20g F2 inlcuding accessories for handling and cleaning and a calibration certificate

Material No.: 30550649

CPM, 500G, 20G, ASTM,1,1,C
CarePac® medium 500g /20g ASTM 1 class, including accessories for handling and cleaning and a calibration certificate

Material No.: 11123107

Footswitch, optional switch for remote operation, USB connection

Material No.: 30312558

P-52RUE dot matrix printer supports printing on paper and continuous label and can be connected via RS232, USB and Ethernet interfaces.

Material No.: 30237290

Dot matrix printer, USB interface, print speed 2.3 lines per second, auto settings detection

Material No.: 30702998

Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30540473

Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30539323

Weight 20g F2 PL C E
Single F2 OIML class knob weight with adjusting cavity in a plastic box including a calibration certificate

Material No.: 30406428

Weight 500g F2 PL C E
Single F2 OIML class knob weight with adjusting cavity in a plastic box including a calibration certificate

Material No.: 30406432

WEIGHT,20G,ASTM,1,PCASE,CAL
Single ASTM 1 class knob weight in a plastic box including a calibration certificate

Material No.: 11123482

WEIGHT,500G,ASTM,1,PCASE,CAL
Single ASTM 1 class knob weight in a plastic box including a calibration certificate

Material No.: 11123486

Consumables

Software

EasyDirect Balance Software

Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30539323

Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30540473
