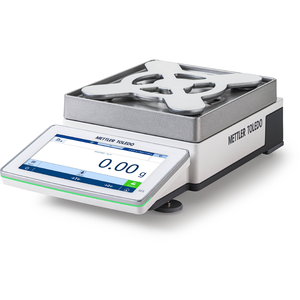

Precision Balance MX2002
Smart Features for Advanced Requirements.Addressing your needs for accuracy, compliance, and user-friendliness. 2.2 kg capacity; 0.01 g readability; SmartPan; user management; advanced reporting; network integration; IP54; advanced routine testing; power-saving mode
Fast and Accurate Weighing Results
With the SmartPan's unique design, the balance stabilizes quickly, even in turbulent environments, enabling faster and more efficient weighing.
GxP-Compliant Documentation
Comply with GxP guidelines with automatic data logging and user management. Transfer data to printer or PC for complete and error-free documentation.
Innovative Engineering
Clever design features provide an ergonomic weighing experience while innovative quality assurance functions ensure accurate results.
Material No.: 30665167
Available for purchase
Product Family:precision00040063
Specifications - Precision Balance MX2002
| Maximum Capacity | 2.2 kg |
| Readability | 0.01 g |
| Minimum Weight (U=1%, k=2), typical | 820 mg |
| Interfaces | Bluetooth (optional) Ethernet (LAN) USB-A USB-C |
| Adjustment | Internal (automatic/FACT) |
| Repeatability, typical | 4 mg |
| Settling Time | 1.2 s |
| Weighing Pan Dimensions (WxD) | 172 mm x 205 mm |
| Minimum Weight (USP, 0.1%, typical) | 8.2 g |
| Display | 7" colour TFT touchscreen |
| Dimensions (HxWxD) | 103 mm x 194 mm x 379 mm |
| Protection Rating | IP54 |
| Approved Balance | No |
| Balance Line | MX |
| Balance Type | Precision Balance |
| Level | Advanced $$ |
| Features | Ingress protection (IP) rating Leveling guidance User management |
| Recommended for | Chemical Pharma |
Stay Up-to-Date with Routine Tests
Define your own routine testing schedule on the balance according to your internal quality requirements and process tolerances. Your balance will remind you when tests are due to be sure your results remain accurate.
Guaranteed Valid Results
StatusLight provides information on the balance status, so you can easily see if the prerequisites for valid results have been fulfilled. The status is included in the logged data together with the weighing results.
Flexible Integration Options
Multiple future-proof interfaces, such as Ethernet and USB, combined with MT-SICS commands make it easy and efficient to transfer weighing data to your existing company infrastructure, including other instruments and laboratory software.
Power-Saving Mode
To save energy and costs, as well as protect the environment, you can configure when your balance will automatically go into its ultra-low power mode, for example overnight and at weekends. It will also warm up to be ready for work at the time you choose.
Durable Construction and IP54 Protection
With a full metal body and a high ingress protection rating, these balances withstand harsh chemicals, dust, dirt, and splashing liquids.
Your Trusted Partner in Weighing
Incorporating decades of weighing expertise and innovation, our laboratory balances don’t compromise on quality or weighing performance. With precise and reliable balances, we are your long-term partner in every weighing measurement you make.
Comprehensive Service Offering
Our services include installation and qualification, calibration, maintenance, and routine testing to ensure your balance is fit for purpose and meets industry standards and regulatory requirements. Customize your service package to meet your precise needs.
Documentation
Accessories
Corded USB barcode scanner for the reading of 1D / linear codes
Material No.: 30417466
RS232 - USB converter cable to connect a balance (RS232) to a USB port
Material No.: 64088427
CarePac 2000g F2 / 100g F2 Cal
CarePac® Medium 2000g F2 / 100g F2 inlcuding accessories for handling and cleaning and a calibration certificate
Material No.: 11123009
CPM, 2000G, 100G, ASTM,1,1,C
CarePac® medium 2000g /100g ASTM 1 class, including accessories for handling and cleaning and a calibration certificate
Material No.: 11123109
Footswitch, optional switch for remote operation, USB connection
Material No.: 30312558
P-52RUE dot matrix printer supports printing on paper and continuous label and can be connected via RS232, USB and Ethernet interfaces.
Material No.: 30237290
Dot matrix printer, USB interface, print speed 2.3 lines per second, auto settings detection
Material No.: 30702998
Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30540473
Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30539323
Weighing pan for small weighing pan 2 place XPE/XS precision balances with SmartPan
Material No.: 30215056
Weight 100g F2 PL C E
Single F2 OIML class knob weight with adjusting cavity in a plastic box including a calibration certificate
Material No.: 30406430
Weight 2kg F2 PL C E
Single F2 OIML class knob weight with adjusting cavity in a plastic box including a calibration certificate
Material No.: 30406434
WEIGHT,200G,ASTM,1,PCASE,CAL
Single ASTM 1 class knob weight in a plastic box including a calibration certificate
Material No.: 11123485
Consumables
Software
EasyDirect Balance Software
Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30539323
Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30540473
