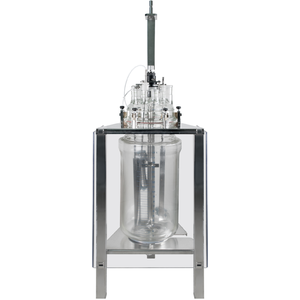

Reactor AP00-18 Glass (RC1mx)
Safe and Reproducible for Kilo Plants.
Small-Scale Production in Safe Conditions
The 18L glass reactor will provide you with the fast and safe production of kilograms of quality reactant.
Reliable and Efficient Process Control
Running fully programmed and controlled small-scale production in the 18L reactor allows efficient recording of critical parameters.
Minimize Secondary Reactions
Performing small-scale reactions with the RC1mx and the 18L reactor allows accurate control of process parameters, including temperature, dosing and pH.
Material No.: 30425612
Specifications - Reactor AP00-18 Glass (RC1mx)
| Operating Volume | 3.5 L – 18 L |
| Nominal Volume | 22 L |
| Ports | Center 40 5 x ST19/26 2 x ST40/45 3 x ST29/32 |
| Inner Diameter | 240 mm |
| Software Requirement | iControl |
| Temperature Range | -20 °C – 200 °C |
| Material | FPM Stainless Steel PTFE Duran® Glass Valflon FEP-O-Seal C22 Alloy Polycarbonate |
