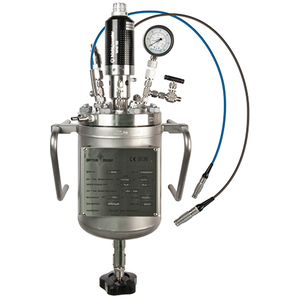

Reactor HP100, C22, 3 Nm (RC1mx)
Efficient development of safe processes.
Study the Plant Process in the Lab
The HP100 reactor is designed to study key process events as they would happen in the plant.
1.8 L Vessel for High-Pressure Chemistry
The HP100 reactor consists of three parts: the pressure vessel (max. pressure of 100 bar), the oil jacket and the outer insulation jacket.
Complete and ready-to-go reactor set
Includes reactor, Tr sensor, calibration heater, 3 Nm drive, stirrer and pressure gage.
Material No.: 30425635
Specifications - Reactor HP100, C22, 3 Nm (RC1mx)
| Material | PTFE Stainless steel (AISI 316) C22 Alloy |
| Operating Volume | 0.5 L – 1.5 L |
| Temperature Range | -10 °C – 250 °C |
| Quantity | 1 pcs |
| Inner Dimensions (HxØ) | 196 mm x 102 mm |
| Pressure Range | Max. 100 bar rel. |
| Nominal Volume | 1.8 L |
| Ports | 3 x 1/2 inch NPT 2 x 3/8 inch NPT 3 x 1/4 inch NPT Center M36 x 1.5 |
Chipped Tr-Sensor and Calibration Heater
Incorporated SmartConnect technology enables a plug-and-play display of measured values as soon as the sensors are connected, as all configuration data is stored on a chip in the cable plug.
