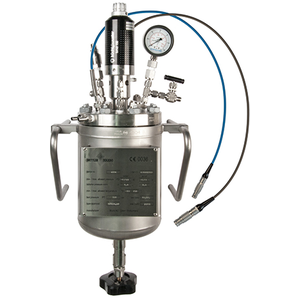

Reactor HP100, SS (RC1mx)
Efficient development of safe processes.
Study the Plant Process in the Lab
The HP100 reactor is designed to study key process events as they would happen in the plant.
1.8 L Vessel for High-Pressure Chemistry
The HP100 reactor consists of three parts: the pressure vessel (max. pressure of 100 bar), the oil jacket and the outer insulation jacket.
Complete and ready-to-go reactor set
Includes reactor, Tr sensor, calibration heater, magnetic drive, stirrer and pressure gage.
Material No.: 30425632
Specifications - Reactor HP100, SS (RC1mx)
| Material | PTFE Stainless steel (AISI 316) |
| Operating Volume | 0.5 L – 1.5 L |
| Temperature Range | -10 °C – 250 °C |
| Quantity | 1 pcs |
| Inner Dimensions (HxØ) | 196 mm x 102 mm |
| Pressure Range | Max. 100 bar rel. |
| Nominal Volume | 1.8 L |
| Ports | 3 x 1/2 inch NPT 2 x 3/8 inch NPT 3 x 1/4 inch NPT Center M36 x 1.5 |
Chipped Tr-Sensor and Calibration Heater
Incorporated SmartConnect technology enables a plug-and-play display of measured values as soon as the sensors are connected, as all configuration data is stored on a chip in the cable plug.
