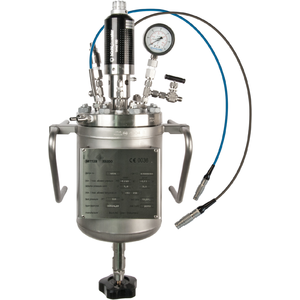

Reactor HP60, SS (RC1mx)
Efficient development of safe processes.
Study the Plant Process in the Lab
The Reactor HP60 is designed to study key process events as they would happen in the plant.
Wide Range of Stirring Options
A large selection of stirrers is available in an extensive array of materials.
Complete and ready-to-go reactor set
Includes reactor, Tr sensor, Calibration Heater, dip tube, stirrer and pressure gauge.
Material No.: 30425620
Specifications - Reactor HP60, SS (RC1mx)
| Operating Volume | 0.5 L – 1.5 L |
| Nominal Volume | 1.8 L |
| Ports | 3 x 1/2 inch NPT 2 x 3/8 inch NPT 3 x 1/4 inch NPT Center M36 x 1.5 |
| Temperature Range | -10 °C – 250 °C |
| Material | 316 Stainless steel |
Chipped Tr-Sensor and Calibration Heater
Incorporated SmartConnect technology enables a plug-and-play display of measured values as soon as the sensors are connected, as all configuration data is stored on a chip in the cable plug.
