Reactor HP60-V, C22 (RC1mx)
Efficient development of safe processes.
Study the Plant Process in the Lab
The HP60 reactor is designed to study key process events as they would happen in the plant.
1.8 L Vessel for High-Pressure Chemistry
The HP60 reactor consists of three parts: the pressure vessel (max. pressure of 60 bar), the oil jacket and the outer insulation jacket.

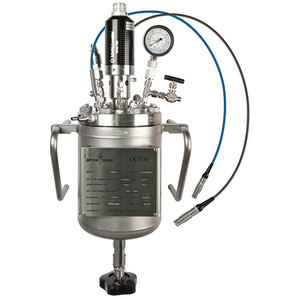

Complete and ready-to-go reactor set
Includes reactor, Tr sensor, calibration heater, magnetic drive, stirrer and pressure gage.
Material No.: 30425627
Specifications - Reactor HP60-V, C22 (RC1mx)
| Material | PTFE Stainless steel (AISI 316) C22 Alloy |
| Operating Volume | 0.5 L – 1.5 L |
| Temperature Range | -10 °C – 250 °C |
| Quantity | 1 pcs |
| Inner Dimensions (HxØ) | 196 mm x 102 mm |
| Pressure Range | Max. 60 bar rel. |
| Nominal Volume | 1.8 L |
| Ports | 3 x 1/2 inch NPT 2 x 3/8 inch NPT 3 x 1/4 inch NPT Center M36 x 1.5 |
Chipped Tr-Sensor and Calibration Heater
Incorporated SmartConnect technology enables a plug-and-play display of measured values as soon as the sensors are connected, as all configuration data is stored on a chip in the cable plug.
