Reactor MP06, C22, Hockey (RC1mx)
Efficient development of safe processes.
Study the Plant Process in the Lab
The MP06 reactor is designed to study key process events as they would happen in a plant environment.
Impressive Design

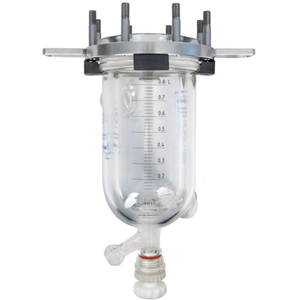

The MP06 glass pressure reactor allows pressure reactions to be performed while visually observing any changes.
Ease of Use
The bottom drain valve and the various ports on the cover plate allow for simple operation, reaction mass draining and easy cleaning.
Material No.: 30425619
Specifications - Reactor MP06, C22, Hockey (RC1mx)
| Material | silicon rubber Stainless Steel PTFE Duran® Glass C22 Alloy |
| Operating Volume | 0.4 L – 1 L |
| Temperature Range | -10 °C – 200 °C |
| Quantity | 1 pcs |
| Inner Dimensions (HxØ) | 228 mm x 82 mm |
| Pressure Range | Max. 6 bar rel. (short time) Max. 5 bar rel. (long time) |
| Nominal Volume | 1.2 L |
| Ports | 3 x 1/2 inch NPT 2 x 3/8 inch NPT 2 x 1/4 inch NPT Center M36 x 1.5 |
Complete and ready-to-go reactor set
Includes reactor, cover, Tr sensor, calibration heater, hockey type inserts, downward propeller stirrer and pressure indicators. Note: does not include safety enclosure.
Chipped Tr-sensor and calibration heater
Incorporated SmartConnect technology enables a plug-and-play display of measured values as soon as the sensors are connected, as all configuration data is stored on a chip in the cable plug.
