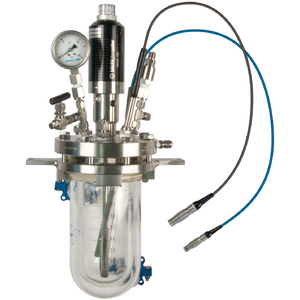

Reactor MP10, C22 (RC1mx)
Efficient development of safe processes.
Study the Plant Process in the Lab
The Reactor MP10 is designed to study key process events as they would happen in the plant.
Wide Range of Stirring Options
A large selection of stirrers is available in an extensive array of materials.
Complete and ready-to-go reactor set
Includes reactor, cover, Tr sensor, Calibration Heater, stirrer and pressure indicators. Note: does not include safety enclosure.
Material No.: 30425616
Specifications - Reactor MP10, C22 (RC1mx)
| Operating Volume | 0.4 L – 1 L |
| Ports | 3 x 1/2 inch NPT 2 x 3/8 inch NPT 2 x 1/4 inch NPT Center M36 x 1.5 |
| Temperature Range | -10 °C – 200 °C |
| Material | Duran® Glass C22 Alloy |
Chipped Tr-Sensor and Calibration Heater
Incorporated SmartConnect technology enables a plug-and-play display of measured values as soon as the sensors are connected, as all configuration data is stored on a chip in the cable plug.
