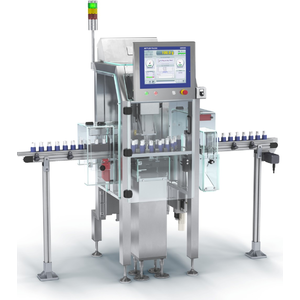

StarWeigh ™ Checkweigher
Maximum Precision for Small Products.The StarWeigh™ delivers laboratory accuracy at production throughput for small, unstable and lightweight products. The compact checkweigher can easily be installed into existing production lines and offers smooth and stable product transfer.
Laboratory Precision at Production Speed
With up to 4 highly precise load cells, the StarWeigh™ achieves accuracies of up to ±5mg at production throughputs of up to 300 ppm.
Flexible, Space Saving Line Integration
With its sleek and compact design, the StarWeigh™ Checkweigher can easily be installed over existing production lines, saving valueable space.
Stable Product Handling
Smooth and stable product handling of small, narrow, and unstable product shapes due to customized starwheels that fit your package shape requirements
Material No.: 2400908000
Product Family:checkweighing00020015
Specifications - StarWeigh ™ Checkweigher
| IP Rating | IP54 IP65 |
| Compatible Software | ProdX |
| Connectivity | Ethernet TCP/IP Fieldbus OPC UA |
| Inspection Solution | Checkweighing |
| Max Product Width | 100 mm |
| Max Weighing Zones | 7 |
| Weighing Technology | EMFR Strain Gauge |
| HMI | 15" Touchscreen |
| Packaging Type | Vials |
| Product Flow | Conveyor |
| Inspection Application | Completeness Check Weight Control |
| Industry | Pharma & Biotech |
| Weighing Accuracy | from ±0.05 g |
| Industry Segment | Cosmetics Food Additives Nutraceuticals Pharma |
| Max Product Weight | 1 kg |
| Max Line Speed | 60 m/min |
| Max Throughput | 300 ppm |
Intuitive Operation with 15" Touchscreen
The multilingual HMI displays key weight, production, and configuration data and helps to facilitate quick and easy product changeovers.
Easy Product Changeover
A variety of starwheels are optionally available to support multiple product formats on one production line. The starwheels are easily exchangeable for quick product changeovers.
High Precision Weighing Technology
The StarWeigh™ comes with a choice of either the new FlashCell load cell, an extremely accurate, temperature compensated (EMFR) load cell, or a robust and cost-effective strain-gauge load cell
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
