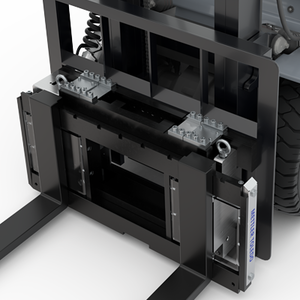

Forklift Scale TLF820 ETO
Seamless Integration, Low-Cost Ownership.TLF820 forklift scales increase productivity with one-step weighing and seamless integration into the logistic process. Designed for tough industrial environments, they set the standard for reliability, safety, and accuracy in heavy-use applications.
Smart integration and process efficiency
Data is transmitted seamlessly from an embedded smart PC. Pre-configured workflows offer step-by-step guidance, reducing effort and human-error.
Reduced Risk of Accidents
Largest viewing window in the industry offers maximum visibility. The terminal is virtual. No unnecessary hardware for operator comfort and safety.
Long Life, Doesn't Break Down
Our forklift scale has been tested to the extreme and has been proven not to break, even when crashed.
Material No.: 72251887
Specifications - Forklift Scale TLF820 ETO
| MaximumCapacity | 3,000 lb - 10,000 lb (1,500 kg - 5,000 kg) |
| Width of Carriage | 762 mm - 1,250 mm |
| Installation Class | II, III, IV |
| Load Loss Distance | 6.5 in 6.9 in (165 mm 175 mm) |
| Resolution | 2 lb 5 lb 10 lb (1 kg 2 kg 5 kg) |
| Connections | DB9 cable or a Bluetooth dongle |
| Certificated temperature | '-10 C to 40 °C 14 to 104°F |
| Capacity Loss | ~15% of forklift capacity |
| Material | Steel |
| Angular Compensation Range | Pitch ±5°, Roll ±3° |
| Load Cell | TSH Loadcells |
| Safe Overload | 150% |
| Stable Weighing Time | 1-2 seconds |
| Display | Smart PC with software |
Cut maintenance costs in half
Unique 3-point suspension holds calibration for 12 months, meaning no need for regular scheduled service. Robust design reduces the need for unplanned service and repair.
Accuracy in all conditions
For use in the rough LTL industry, the TLF820 delivers accurate weighing results, even in tough conditions.
