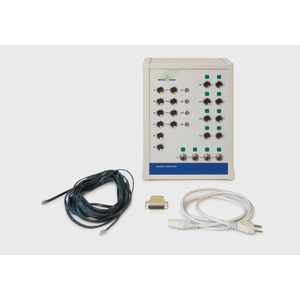

Universal Control Box
Measure and Control Reaction Parameters.
Enhance your reaction knowledge
Regardless of the type of sensor or control device used, the Universal Control Box (UCB) supports measuring and controlling reaction parameters.
Record all your critical data
The UCB allows connection to any analog sensors recording critical parameters such as temperature, pressure, turbidity, pH, and many more.
Control all your critical parameters
The UCB provides controllable outputs (voltage, current, frequency, PWM) for connecting valves and pumps, and RS232 ports for balances.
Material No.: 51161390
Specifications - Universal Control Box
| Weight | 4.6 kg |
| Material | Powder-coated Stainless Steel Aluminum Plastic-coated |
| Dimensions (LxHxW) | 263 mm x 355 mm x 150 mm |
| Inputs | -10 to +10 V Pt100 pH 0 - 14 0-20 mA |
| Outputs | Relays 30 VDC 0-20 mA 1 - 2 Hz VAC 0–10V PWM 24V |
| Power Requirements | 101 - 240 V 50/60 Hz |
| Communication | RS422 RS232 |
