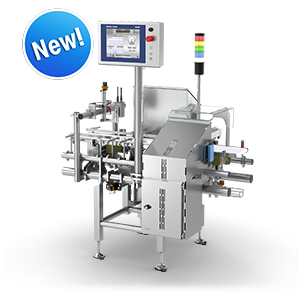

V13 Flatpack Label Inspection System
Robust, flexible, space-saving.This solution carries out reliable label inspection from the bottom up to inspect labels on the underside of flat packs. The stand-alone solution offers configurable material handling options and can be extended with top and side smart cameras.
High-speed Label Inspection
Efficient smart camera for 100% automated inspection of labels positioned on the bottom of packages with speeds of up to 300 ppm and 70 m/min.
Prevent Retailer Fines
The V13 verifies 1D/2D barcodes to help ensure every product is machine-readable at the supermarket checkout to avoid costly retailer fines.
Flexible Camera Options
For additional quality control, add smart cameras to verify label data and quality from the top and from the sides.
Material No.: 2402130000
Product Family:CIVision00050014
Specifications - V13 Flatpack Label Inspection System
| Reading Devices | Smart Camera |
| IP Rating | IP54 IP65 |
| Compatible Software | ProdX |
| Connectivity | Ethernet TCP/IP Fieldbus OPC UA |
| Inspection Solution | Visual Inspection |
| Max Product Width | 400 mm |
| HMI | 12" Touchscreen |
| Packaging Type | Bags Bundles Cartons Flow Packs Trays |
| Product Flow | Conveyor |
| Max Camera Field of View | 128 x 96 mm |
| Label Quality Inspection | Graphical ID Label Placement Label Skew Label Wrinkles |
| Inspection Application | Code Inspection Label Inspection |
| Product Characteristic | Deep Frozen Dry Heavy Weight Packages Medium-Large Packages Open Small Individual Wrapped Products Small-Medium Packages Wet |
| Industry | Chemical Food & Beverage Metal, Plastic and Electronics Components Pharma & Biotech Transport and Logistics |
| Max Product Height | 200 mm |
| Industry Segment | Agriculture and Bulk Foods Automotive Bakery and Confectionary Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Shipping and Mailing Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| Number of Reading Devices | 4 |
| Max Line Speed | 70 m/min |
| Max Throughput | 300 ppm |
| Camera Inspection Area | Bottom |
Intuitive Operation
User friendly software simplifies the setup of products and supports product changes to be managed centrally. Embedded user management provides security. Based on the established Checkweighing software for minimal operator training requirements.
Completeness Control
The V13 verifies that all data contained on a product label is present and readable. Products with missing, incorrect, or non-readable information are identified and reliably sorted.
Increased Productivity
Digital position indicators support fast and easy product changeovers for additional productivity. On-screen information provides system status updates for troubleshooting.
Application Specific Configuration
The V13 can be configured flexibly to match individual production needs and offers a choice of material handling, sorting devices and options. The flexible position of the control enclosure and HMI offers increased flexibility.
Connectivity supports Automation
Various interfaces including Ethernet, Fieldbus and OPC technologies enable IoT / Industry 4.0 initiatives to access, analyze and control production data anytime and anywhere. The system can be connected to the ProdX™ quality management software.
Available as a Combination System
Save space and perform multiple inspections in one, fully integrated machine by combining the V13 with a checkweigher, metal detector, or x-ray inspection system. Shared material handling and sorting devices aid productivity and reduce cost.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offer allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
