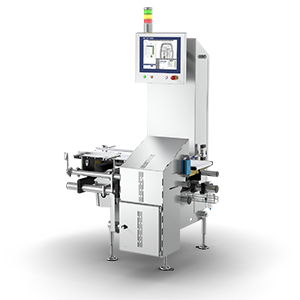

V33 Flat Pack Vision Inspection System
Efficient, customizable, intuitive use.Advanced bottom inspection of a variety of packages. The system supports customized lighting and can be extended with top cameras for further applications such as seal contamination inspection.
Effective Bottom Inspection
Supporting up to 400 ppm, capture the nuances associated with various product shapes or sizes where a larger field of view is required.
Application Based Design
Cameras and advanced lighting options help overcome challenging applications where wet, reflective, or uneven surfaces interfere with imaging.
Intuitive Software
Powerful CIVCore software offers a range of inspection options for easy setup and configuration.
Material No.: 2402330000
Product Family:CIVision00050011
Specifications - V33 Flat Pack Vision Inspection System
| Reading Devices | PC-Based Camera |
| IP Rating | IP54 IP65 |
| Compatible Software | ProdX |
| Connectivity | Fieldbus OPC UA |
| Inspection Solution | Visual Inspection |
| Max Product Width | 400 mm |
| HMI | 15" Touchscreen |
| Packaging Type | Bags Bundles Cartons Flow Packs Trays |
| Product Flow | Conveyor |
| Max Camera Field of View | 300 x 200 mm |
| Label Quality Inspection | Graphical ID Label Placement Label Skew Label Wrinkles |
| Inspection Application | Cap Inspection Code Inspection Completeness Check Custom Inspection Fill level Check Integrity Check Label Inspection Seal Inspection |
| Product Characteristic | Deep Frozen Dry Heavy Weight Packages Medium-Large Packages Open Small Individual Wrapped Products Small-Medium Packages Wet |
| Industry | Chemical Food & Beverage Metal, Plastic and Electronics Components Pharma & Biotech Transport and Logistics |
| Max Product Height | 200 mm |
| Industry Segment | Agriculture and Bulk Foods Automotive Bakery and Confectionary Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Shipping and Mailing Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| Number of Reading Devices | 3 |
| Max Line Speed | 70 m/min |
| Max Throughput | 300 ppm |
| Camera Inspection Area | Bottom |
Label Data and Quality Control
Reduce rework or opportunities for product recalls by inspecting label data and quality that could result in label mix-up or misrepresent your brand.
Seal Contaminant Inspection
Check for contaminants in seals to minimize issues in downstream production processes.
Multiple Inspection Capabilities
Add cameras for top, front, or rear inspection, either on the system or on the production line where other packaging steps occur, which is common where products are sorted into another carton.
Advanced Product Tracking
Product tracking capabilities easily integrate with existing production processes for product sorting or to add cameras for more inspection stations.
Multiple Lighting Options
Create optimal contrast on the product using advanced lighting solutions in order to detect defects in labeling and packaging.
Advanced Camera Configurations
Powerful pc-controlled cameras come in a variety of resolutions, lenses, and filters and are designed for optimum speed and performance for your application.
Global Service and Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
