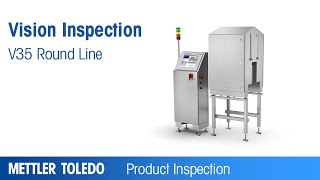

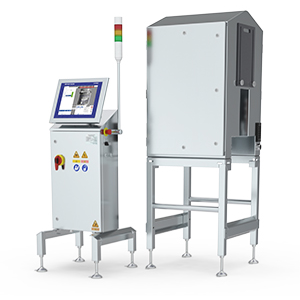

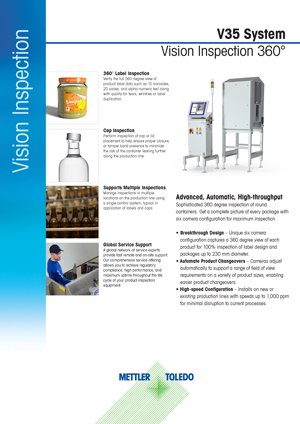

Vision Inspection System, V35
Advanced, automatic, high-throughput.Sophisticated 360° inspection of round containers. Get a complete picture of every package with six-camera configuration for maximum inspection.
Breakthrough Design
Unique six-camera configuration captures a 360° view of each product for 100% inspection of label design and packages up to 230 mm in diameter.
Automate Product Changeovers
Cameras adjust automatically to support a range of field-of-view-requirements on a variety of product sizes, enabling easier product changeovers.
High-Speed Configuration
Installs on new or existing production lines with speeds up to 1,000 ppm for minimal disruption to current processes.
Material No.: 2828420800
| Reading Devices | PC-Based Camera |
| IP Rating | IP54 IP65 |
| Compatible Software | ProdX |
| Connectivity | OPC UA |
| Inspection Solution | Visual Inspection |
| Max Product Width | 110 mm |
| HMI | 15" Touchscreen |
| Packaging Type | Bottle Composite Cans Metal Cans Vials |
| Product Flow | Conveyor |
| Max Camera Field of View | 165 x 125 mm |
| Label Quality Inspection | Graphical ID Label Placement Label Skew Label Wrinkles |
| Inspection Application | Cap Inspection Code Inspection Completeness Check Custom Inspection Fill level Check Integrity Check Label Inspection Seal Inspection |
| Product Characteristic | Deep Frozen Dry Heavy Weight Packages Medium-Large Packages Open Round Container Small Individual Wrapped Products Small-Medium Packages Wet |
| Industry | Chemical Food & Beverage Metal, Plastic and Electronics Components Pharma & Biotech Transport and Logistics |
| Max Product Height | 200 mm |
| Industry Segment | Agriculture and Bulk Foods Automotive Bakery and Confectionary Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Shipping and Mailing Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| Number of Reading Devices | 8 |
| Max Line Speed | 100 m/min |
| Max Throughput | 1000 ppm |
| Camera Inspection Area | 360° |
Label Data and Quality Control 360°
Verify the full 360° view of product label data such as 1D barcodes, 2D codes, and alpha-numeric text along with quality for tears, wrinkles, or label duplication.
Cap Inspection
Perform inspection of cap or lid placement to help ensure proper closure, or tamper band presence to minimize opportunity for downstream container leaking.
Supports Multiple Inspections
Manage inspections on multiple locations on the production line using a single control system, typical in application of labels and caps.
Advanced Product Tracking
Vary the placement of the HMI control, camera enclosure, and sorters where it fits on the production line in order to integrate with new or existing production processes for maximum efficiency.
Multiple Lighting Options
Advanced lighting options are designed to create optimal contrast in order to detect defects in labeling and packaging.
Advanced Camera Configurations
Powerful pc-controlled cameras come in a variety of resolutions, lenses, and filters and are designed for optimum speed and performance for your application.
Global Service and Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
