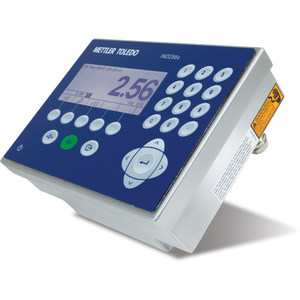

Weigh Term IND256x
Safe Weighing in Hazardous Areas.Weighing Terminal IND256x (No WiFi) for Zone 1/21 and Div. 1 hazardous area applications.
Simplified Installation
Connect to an external battery for mobile applications or to a power supply for installation in Divison 1.
Reduce Total Maintenance Costs
Reduce costs by up to 60% by choosing an intrinsically safe method of protection when compared to flame-proof and explosion-proof solutions.
Assured Safety
Assured safety over multiple maintenance cycles beyond commissioning when compared to flame-proof and explosion-proof solutions.
Material No.: 303152721
Product Family:scale-indicator00020052
Specifications - Weigh Term IND256x
| Scale | 4 x 350 Ohm Load Cells Analog |
| Hazardous Approval | Division 1 Zone 1/21 |
| Communication | Intrinsically safe RS232 |
| Communication (Optional) | 4-20 mA Analog Output Intrinsically Safe Active Current Loop Communication Interface Intrinsically Safe Passive Current Loop Communication Interface |
| Voltage | Intrinsically Safe Power Supply |
| Display | LCD Display with white backlight |
| Mounting Flexibility | Table/Wall/Column |
| Dimensions (LxHxW) | 230 mm x 127 mm x 173 mm |
| A/D Update Rate | 366 Hz |
| Protection Rating | IP66 |
| Housing | Harsh Stainless Steel |
