Detect a Wide Range of Contaminants
Beyond metal, the X12 can detect glass, stone, bone and many low-density materials.
Enhance Product Quality
Go beyond contamination detection, to perform a variety of product integrity checks to improve product safety and quality.
Increase Productivity
An intuitive interface paired with a front opening design provides easy access for cleaning and maintenance, increasing uptime and productivity.

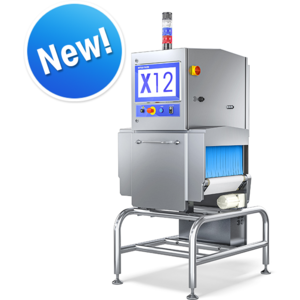

Material No.: 3065973700
IP Rating | IP65 IP66 |
Compatible Software | ProdX |
Connectivity | Ethernet OPC UA USB |
Inspection Solution | X-ray Inspection |
Max Product Width | 380 mm |
HMI | 15.6" Touchscreen |
Packaging Type | Cardboard Cartons Metalized Film Plastic Trays |
Cooling Method | Air Conditioner |
Product Flow | Conveyor |
X-ray Beams | Single vertical beam |
X-ray Generator | 100 W, up to 84 kV, up to 3.3 mA Beryllium Tube 150 W, up to 85 kV, up to 3.0 mA Glass Tube |
Inspection Application | Clip Detection Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
Product Characteristic | Small-Medium Packages |
Industry | Chemical Food & Beverage Pharma & Biotech |
Max Product Height | 200 mm |
Industry Segment | Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
X-ray Detector | Single Energy, HiGain Technology |
Max Product Weight | 25 kg |
X-ray Emissions | < 1uSv/hr |
Max Line Speed | 60 m/min |
Max Throughput | 300 ppm |
Diode Size | 0.4 mm |
Make Compliance Easier
As part of Critical Control Points (CCPs) in the production line, production data must be recorded and available for review. The audit trail and image library recorded by the X12 software makes it easier to comply with regulations.
Maximize Product Safety
Next Generation HiGain detector technology offers the most advanced contaminant detection from METTLER TOLEDO single energy machines to date. The X12 system with HiGain technology provides consumers with safe and reliable products.
Designed for Your Applications
Encompasses easy front-opening design for access to the full inspection chamber and includes an integrated reject. This design makes maintenance, cleaning, and removing product jams quick and easy.
Product Validation Feature
This feature provides constant monitoring of the inspection settings, displaying any alteration and allowing immediate restoration, so that the machine operates at its optimum capabilities.
Enhance Production Data Visibility
Achieve the highest level of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
Global Service Support
A global network of experts provides fast, remote and on-site support. Our comprehensive service solutions help you to achieve regulatory compliance, improve performance and maximize uptime throughout the lifecycle of your product inspection equipment.
5-Year Generator Warranty
Minimize downtime and protect the most valuable part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
