The X33 Series Bulk Flow system has been designed specifically to inspect unpackaged products in a bulk format.

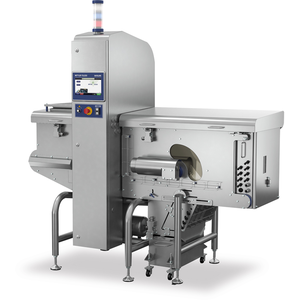

X33 Series Bulk Flow
Outstanding Bulk Inspection.The X33 Series Bulk X-ray system provides exceptional contamination detection in unpackaged products in a bulk flow format, inspecting up to 5,000 kg of product per hour.
Reducing Costs with Low Energy
Powered by a 20W generator, the X33 is a low-energy inspection solution, thereby reducing total cost of ownership (TCO).
Ensuring Food Safety
Contaminants are forwarded to a lockable reject bin, which minimizes waste, ensures food safety and provides due diligence.
Maximizing Uptime with a Hygienic Design
The hygienic design allows easy access to all machine areas and has no hidden bug traps, ensuring good uptime. IP69 is maintained as standard.
Material No.: 3054124900
Product Family:XRInspection00040020
Specifications - X33 Series Bulk Flow
| IP Rating | IP69 |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| HMI | 10.1" Touchscreen |
| Packaging Type | Unpackaged |
| Cooling Method | Passive fan assisted internal cooling |
| Product Flow | Conveyor |
| X-ray Beams | Single vertical beam |
| X-ray Generator | 20 W, up to 84 kV, up to 0.25 mA Beryllium Tube |
| Inspection Application | Contamination Detection |
| Product Characteristic | Loose Flow |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 50 mm |
| Industry Segment | Agriculture and Bulk Foods Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiQiQ Technology |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 60 m/min |
| Max Throughput | 5000 kg/hr |
| Diode Size | 0.8 mm |
Improving Operator Efficiency
The software is sophisticated yet simple to use, with a user-friendly interface based on icons, plus touch and scroll features.
Minimizing Product Waste
Multi-lane scoop reject options are available to minimize product waste, making it suitable for a wide range of products.
Consistent, Reliable Inspection Results
A troughed belt retains the product on the belt, minimizing spillage and maintaining the product at a consistent and acceptable depth prior to inspection.
Offering Application Versatility
The X33 Series Bulk Flow is not affected by changes in product temperature or moisture, making it ideal for wet or frozen applications while minimizing false rejects.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
